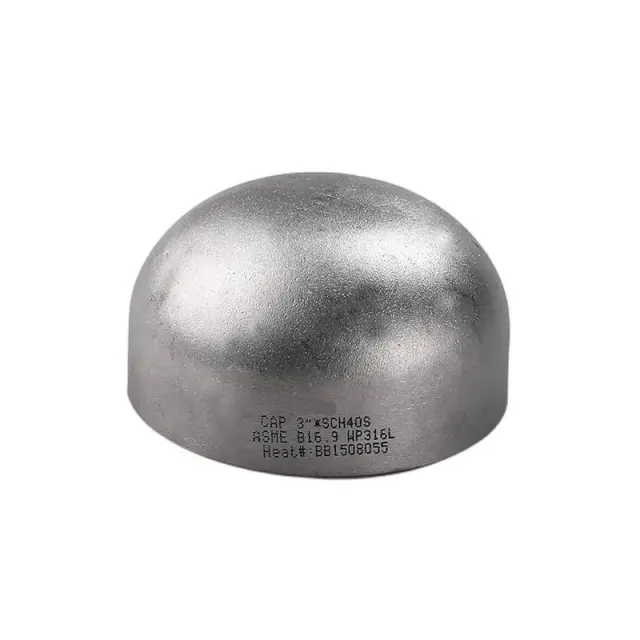

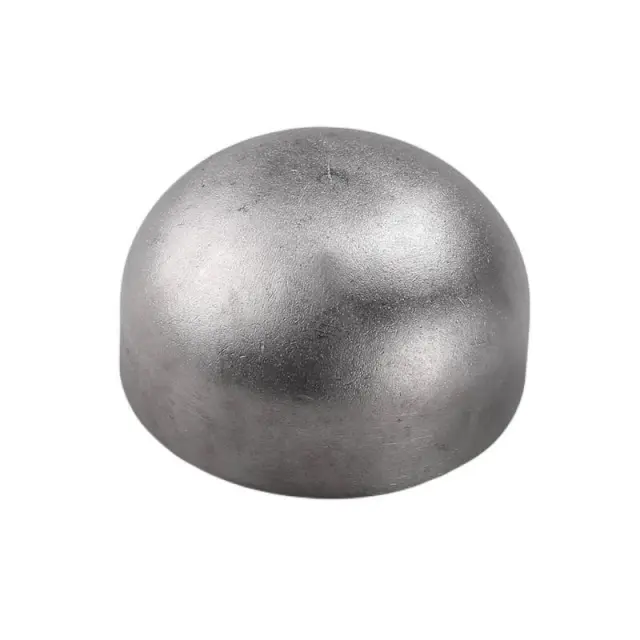

Stainless Steel Butt Weld Pipe Cap | ASME B16.9 Pipe End Cap Manufacturer

What is a Butt Weld Pipe Cap?

A butt weld pipe cap (also known as a pipe end cap or BW cap) is a type of welded pipe fitting installed at the end of a pipeline. It is designed to permanently or temporarily close the pipe opening, preventing the flow of liquids, gases, or other media.

The cap is connected using a butt welding process, which ensures a strong, seamless, and leak-proof joint. This makes it one of the most reliable pipe closure solutions in high-pressure piping systems.

ASME B16.9 Standard Pipe Cap

The ASME B16.9 pipe cap standard defines the dimensions, tolerances, and manufacturing requirements for factory-made wrought steel butt weld fittings.

Key features include:

• Size range: 1/2" to 48" (DN15–DN1200)
• Wall thickness: SCH10, SCH20, SCH40, SCH80, SCH160, XXS
• Types: seamless pipe cap, welded pipe cap, fabricated cap
• Standards: ASME B16.9, MSS SP-43
• End type: butt weld ends

This standard ensures interchangeability and compatibility with global piping systems used in oil & gas, petrochemical, power plants, and water treatment industries.

Stainless Steel Butt Weld Pipe Cap Materials

We supply a wide range of materials to meet different industrial requirements:

Stainless Steel Grades

• ASTM A403 WP304 / WP304L stainless steel pipe cap
• ASTM A403 WP316 / WP316L stainless steel pipe cap
• ASTM A403 WP321, WP347, duplex stainless steel caps

Carbon & Alloy Steel Grades

• ASTM A234 WPB carbon steel pipe cap
• Low-temperature steel pipe caps (WPL6)
• Alloy steel butt weld fittings

Among them, WP304 and WP316 stainless steel pipe caps are the most popular due to their excellent corrosion resistance and durability.

Advantages of Stainless Steel Pipe End Caps

Choosing a stainless steel butt weld pipe cap provides several advantages:

• Excellent corrosion resistance (especially WP316 in chloride environments)
• High strength and pressure resistance
• Long service life with minimal maintenance
• Leak-proof welded connection
• Suitable for high-temperature and high-pressure applications
• Smooth internal surface reduces turbulence

These features make them ideal for demanding industrial environments.

Manufacturing Process of BW Pipe Caps

The production of ASME B16.9 butt weld pipe caps typically includes:

1. Raw material selection (stainless steel or carbon steel)
2. Cutting and heating
3. Hot or cold forming process
4. Heat treatment for strength improvement
5. Machining and beveling
6. Surface finishing (pickling, polishing, or sand blasting)
7. Final inspection and quality testing

Strict quality control ensures every pipe cap meets international standards.

Applications of Stainless Steel Butt Weld Pipe Caps

Stainless steel pipe caps are widely used across various industries:

• Oil and gas pipelines
• Petrochemical and chemical plants
• Power generation systems
• Shipbuilding and marine engineering
• Water treatment and desalination plants
• Food and pharmaceutical industries
• Industrial pressure piping systems

They are especially critical in systems where pipeline sealing safety and corrosion resistance are required.

Why Choose a China Butt Weld Pipe Cap Manufacturer?

As a professional butt weld pipe cap manufacturer in China, we provide:

• Full size range (1/2”–48”)
• ASTM A403 stainless steel and ASTM A234 carbon steel materials
• ASME B16.9 standard compliance
• Competitive factory pricing
• Fast production and global shipping
• OEM and customized solutions available

We are committed to supplying high-quality industrial pipe fittings to customers worldwide.

Conclusion

The stainless steel butt weld pipe cap is a critical component for sealing pipeline systems in various industrial applications. Manufactured under ASME B16.9 standards, these pipe caps ensure durability, safety, and excellent corrosion resistance.

As a reliable pipe cap manufacturer and supplier in China, we provide high-quality stainless steel and carbon steel pipe caps for global industrial projects, ensuring performance, safety, and long service life.
