Urban surfaces such as concrete, asphalt, paving stones, and tiles allow less water to naturally penetrate into the ground.
During heavy rainfall, large amounts of water can therefore move rapidly across the surface.
If the drainage system cannot collect water quickly enough, several problems can occur:
This is why surface drainage needs to be considered as a complete system rather than as an individual product.
A drainage channel, grate or trench cover, outlet, underground pipe, and surrounding pavement all work together.
A trench cover has two basic functions:
Protect the drainage channel and allow surface water to enter the drainage system.
The design of the cover can influence how water reaches the channel.
Important factors include:
A greater effective opening area can provide more pathways for surface water to enter the channel, depending on the overall drainage design.
The arrangement and shape of openings can affect how water enters the channel and how debris interacts with the cover.
The top surface should provide appropriate pedestrian or vehicle interaction while maintaining drainage openings.
The trench cover must work correctly with the drainage channel beneath it.
During heavy rain, leaves, soil, plastic, stones, and other debris can accumulate around drainage openings.
This can reduce the effective water-entry area.
This is why drainage maintenance is important even when the trench cover itself is structurally sound.
For outdoor drainage systems, regular inspection can help identify:
Yes, but the situation is more complicated than simply choosing a cover with larger openings.
Drainage performance depends on the complete system.
A cover should be selected according to:
Therefore, trench cover selection should be coordinated with the overall drainage design.
Drainage systems are frequently installed in places where pedestrians need to move safely.
Examples include:
During heavy rainfall, these areas can quickly become wet and slippery.
A properly installed trench cover helps create a stable surface while allowing water to enter the drainage channel.

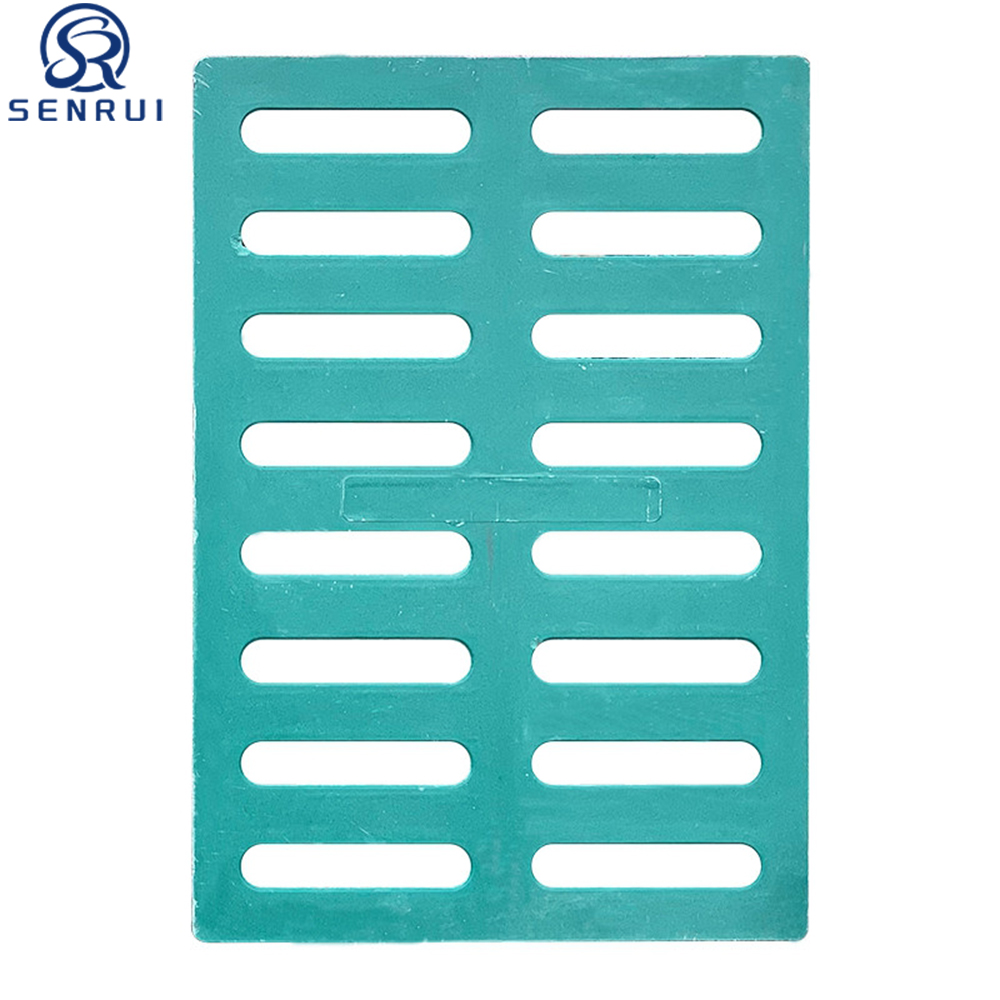

A Resin Composite Trench Cover can be considered for various urban drainage applications where lightweight handling, corrosion resistance, and flexible design are important.
Compared with conventional metal covers, composite construction can provide several practical characteristics.
Lower weight can make covers easier to transport, install, remove, and maintain in suitable applications.
Resin composite materials are generally resistant to moisture and do not rust in the same way as ferrous metals.
This can be beneficial for drainage systems that are frequently exposed to water.
Depending on the manufacturing process, composite trench covers can be produced with different dimensions, opening patterns, surface designs, and frame configurations.
Composite covers can be incorporated into:
Drainage covers installed outdoors may experience several environmental conditions simultaneously.
Frequent water exposure requires materials and structures suitable for wet environments.
Outdoor products may be exposed to sunlight for many years. Material formulation and surface design should therefore be considered.
Seasonal temperature changes can affect materials and installation structures.
In regions where road salt is used during winter, drainage components may be exposed to saltwater and chlorides.
Industrial drainage systems may encounter oils, cleaning agents, or other chemicals.

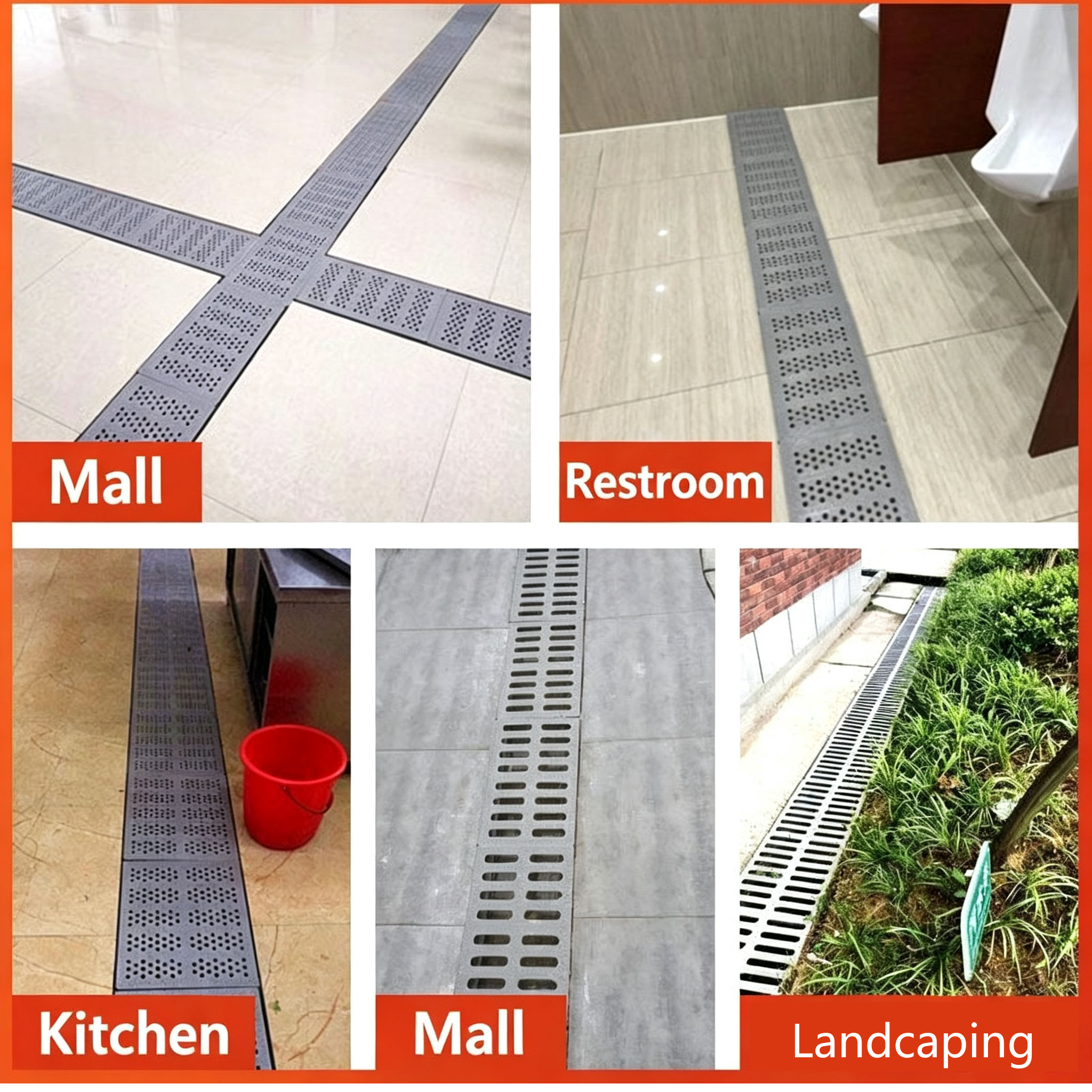

Different areas have different requirements.
| Application | Main Considerations |
|---|---|
| Sidewalk | Pedestrian safety, drainage, easy maintenance |
| Park | Drainage, appearance, corrosion resistance |
| Plaza | Pedestrian loading, appearance, drainage |
| Commercial Area | Appearance, maintenance, traffic conditions |
| Parking Area | Vehicle loading, drainage, frame strength |
| Industrial Facility | Load, chemicals, maintenance |
| Roadway | High load requirements and applicable standards |
The same trench cover should not automatically be used in every environment.
One of the simplest ways to improve drainage performance is to inspect the system before periods of heavy rainfall.
A basic maintenance checklist can include:
Check for cracks, deformation, movement, or damage.
Remove debris and sediment.
Check for corrosion, movement, or damage.
Inspect for accumulated mud, leaves, stones, and other obstructions.
Make sure downstream drainage connections remain clear.
Look for uneven areas or settlement that could prevent water from reaching the drainage channel.
Preventive maintenance can help identify problems before they become larger drainage failures.
A:Yes. The opening area and pattern can influence how surface water enters the drainage channel. However, overall drainage performance also depends on the channel, outlet, slope, and surrounding surface.
A:They can be suitable for many outdoor drainage applications. Resin composite materials generally provide good resistance to moisture, but the product should be selected according to the specific environmental and loading conditions.
A:A trench cover alone cannot prevent flooding. Flood protection depends on the capacity and design of the complete drainage system.
A:Cleaning frequency depends on the surrounding environment. Areas with many trees, leaves, sediment, or heavy rainfall may require more frequent inspection and cleaning.
A:Yes. They can be used in many pedestrian drainage applications when the product has the appropriate load rating and dimensions.
A:Provide the channel dimensions, required clear opening, application, expected loading, quantity, environmental conditions, and any project drawings or specifications.
Effective drainage is not simply about moving water away from a surface. It requires a complete system in which the drainage channel, trench cover, frame, outlet, and surrounding pavement work together.
A properly designed Resin Composite Trench Cover can provide a practical solution for suitable drainage applications where lightweight handling, corrosion resistance, and customized design are important.
For sidewalks, parks, plazas, commercial developments, and other urban drainage projects, the right cover can contribute to both surface drainage and pedestrian safety.
However, the cover should always be selected according to the actual drainage requirements, loading conditions, dimensions, environmental exposure, and applicable project standards.
