A Ductile Iron Drain Dome Grate is a domed drainage grate installed over a drain basin, catch basin, vertical drainage outlet, or similar stormwater collection point.
Unlike a flat drainage grate, the dome-shaped profile extends above the surrounding drainage opening. Water can enter through the openings around the dome while leaves, branches, landscape debris, and other larger materials are less likely to completely cover the drainage inlet.
Ductile iron is commonly selected for outdoor drainage components because it provides high strength, impact resistance, and good durability for demanding environmental conditions.

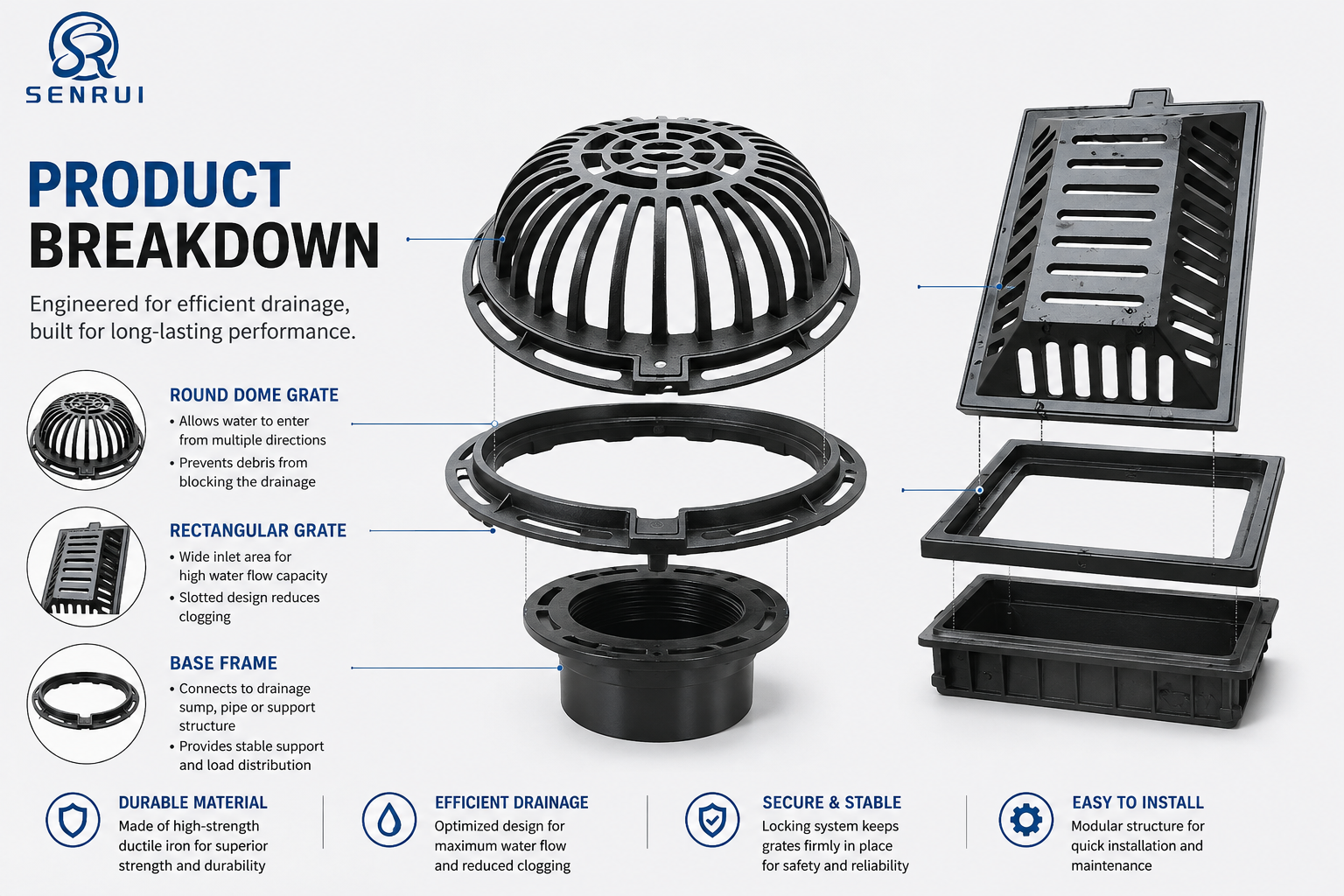

Depending on the project design, a dome grate can be supplied as an individual grate or as part of a complete drainage assembly with a frame, basin, outlet connection, locking system, or other accessories.
The right design depends on the drainage environment rather than simply choosing the strongest product.
| Feature | Ductile Iron Dome Grate | Flat Drainage Grate |
| Profile | Raised dome shape | Flat surface |
| Debris Management | Helps reduce complete surface blockage | Can be more easily covered by flat debris |
| Water Collection | Multi-directional around dome | Primarily through top openings |
| Landscape Applications | Excellent | Good |
| Stormwater Inlets | Excellent | Good |
| Maintenance Access | Generally removable | Generally removable |
Outdoor drainage systems face several common problems:
The dome configuration helps maintain an accessible drainage inlet even when debris accumulates around the drainage area.Typical Specifications of Ductile Iron Drain Dome Grate
| Parameter | Typical / Available Options |
|---|---|
| Product Name | Ductile Iron Drain Dome Grate |
| Material | Ductile Iron |
| Material Standard | ASTM A536 or customer-specified equivalent |
| Shape | Dome / Square/ Domed Grate |
| Surface Treatment | Black Paint / Protective Coating / Customized |
| Installation | Drop-in, bolted, locking, or customized |
| Drainage Application | Stormwater, surface drainage, landscape drainage |
Ductile iron dome grates are particularly suitable for drainage locations where surface water collection and debris control are important.
Used to collect rainwater from outdoor areas and direct it into underground drainage systems.

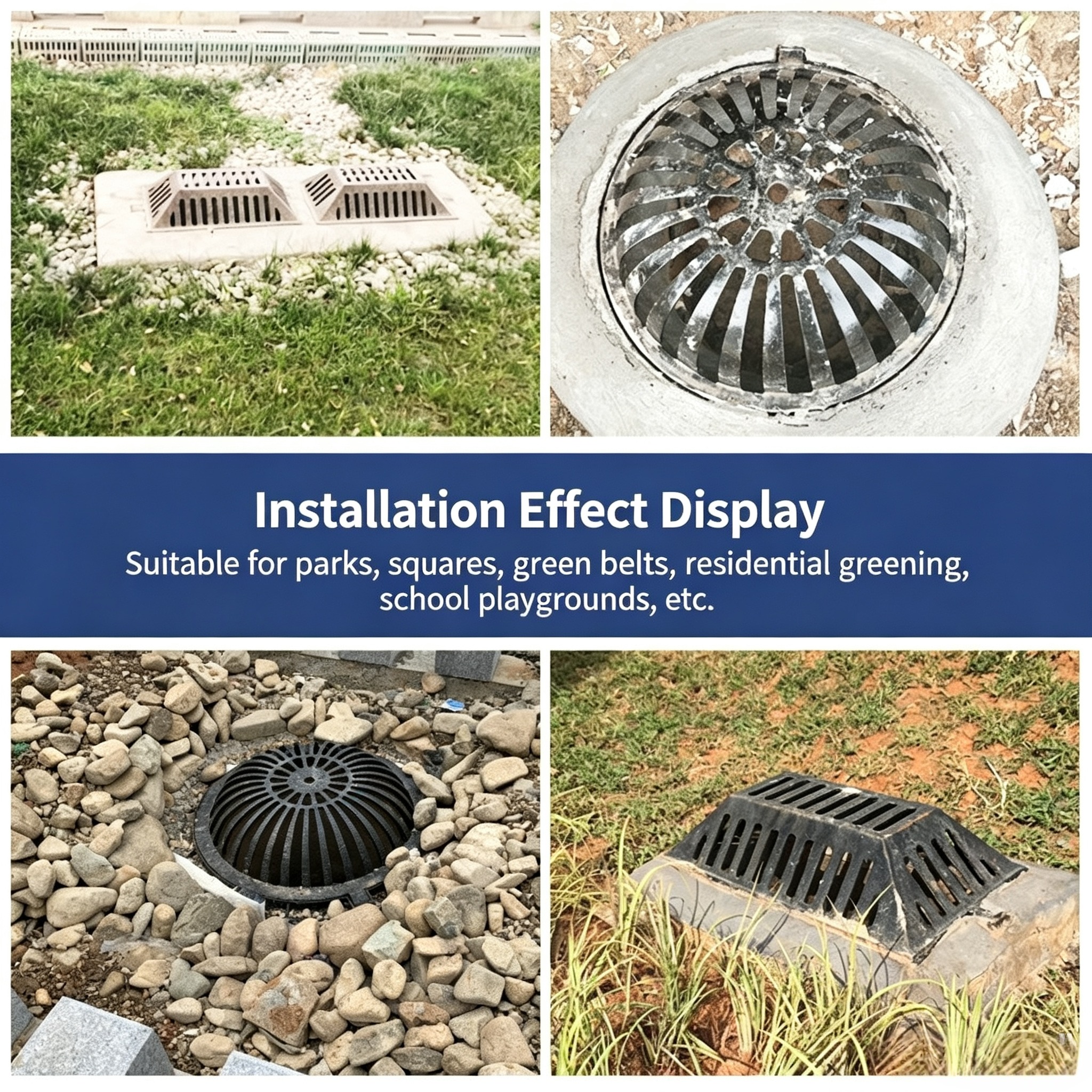

Suitable for gardens, landscaped areas, lawns, planter areas, and other outdoor spaces.
Can be considered for parking and vehicle-accessible areas when the selected grate has the appropriate load rating.
Dome grates are commonly integrated with drainage basins to create a complete stormwater inlet assembly.
Suitable for certain agricultural drainage and irrigation environments where surface runoff needs to be collected.
Depending on the load requirements and project specifications, ductile iron drainage grates can be used around industrial facilities, warehouses, commercial properties, and infrastructure projects.
Dome-shaped grates are also used in rainwater outlets and overflow drainage systems. Some commercial rainwater products emphasize large open areas for water flow and removable grate designs for maintenance access.
Maintenance frequency should be increased before and during heavy-rainfall seasons, particularly in areas with dense vegetation.
Recommended maintenance includes:
A:A ductile iron drain dome grate is a domed drainage inlet component used to collect surface or stormwater while helping limit the entry of larger debris into the drainage system.
A:Ductile iron generally provides higher mechanical strength and impact resistance than conventional grey cast iron, making it a suitable material for many demanding drainage applications.
A:Sizes depend on the drainage system and manufacturer. Custom diameters, heights, opening patterns, and mounting configurations can be produced according to project requirements.
A:It depends on the specific product and its tested load rating. A dome shape or ductile iron material alone does not establish a traffic load classification. For driveways, parking areas, roads, or industrial traffic zones, confirm the required load rating before selection.
A:Yes. Depending on the manufacturer, customization may include dimensions, opening pattern, frame configuration, coating, locking system, and other project-specific requirements.
A:Yes, dome grates can be incorporated into drainage assemblies using different pipe and basin systems. The connection method and adapter should be confirmed according to the specific pipe material and drainage design. Commercial drainage details show dome grates integrated with HDPE, PVC, and other drainage connections.
A:Its raised profile provides drainage openings around the dome rather than relying solely on a flat horizontal surface. This can help maintain water entry when some debris accumulates around the inlet, although regular cleaning is still necessary.
A Ductile Iron Drain Dome Grate is more than a simple drainage cover. Its material, dome profile, opening area, dimensions, load capacity, installation method, and connection design all influence the performance of the complete drainage system.
For residential landscaping, stormwater collection, drainage basins, agricultural areas, commercial developments, and infrastructure projects, the correct grate should be selected according to the actual drainage opening, required flow area, environmental conditions, maintenance requirements, and expected loading.
If you are sourcing ductile iron drain dome grates for a new project or replacement application, provide the required dimensions, drainage opening, load requirement, quantity, and application conditions. We can recommend a suitable configuration and provide technical drawings, specifications, surface treatment options, and customized solutions for your project.
Need a custom ductile iron drain dome grate? Contact us with your dimensions or drawings for a technical quotation.
