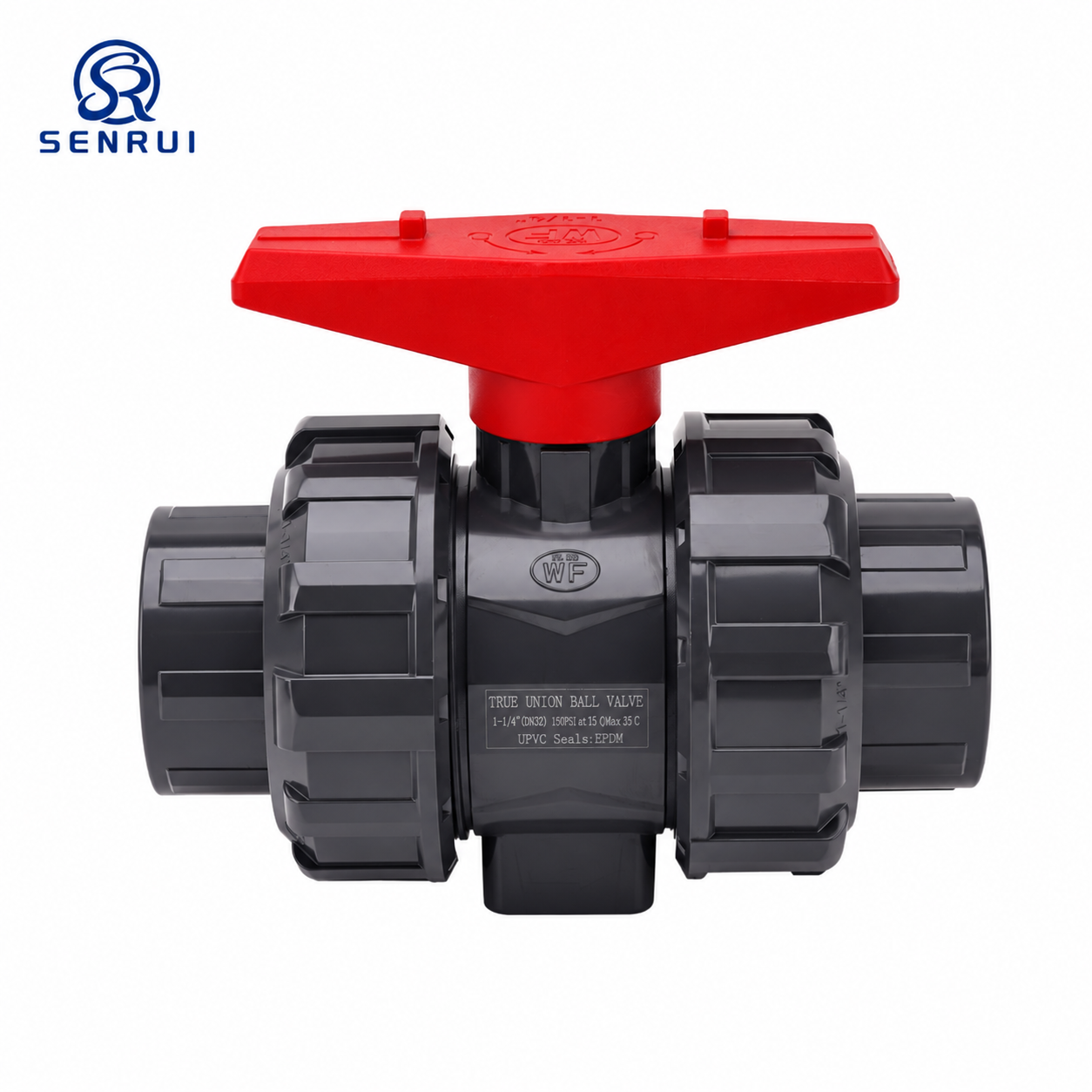

An UPVC True Union Ball Valve, also called a UPVC Double Union Ball Valve, is a quarter-turn isolation valve designed for convenient installation, removal, and maintenance in plastic piping systems.

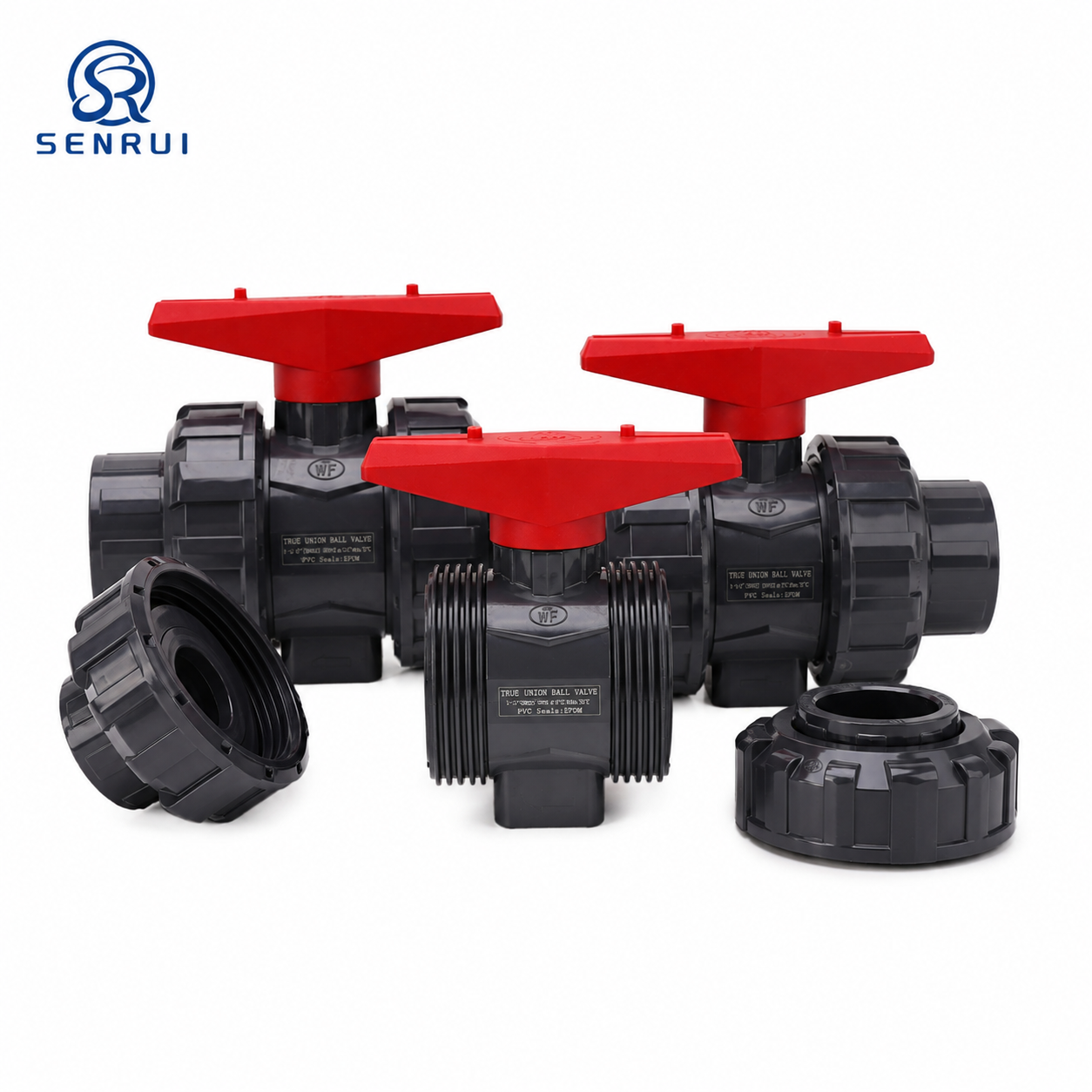

Unlike a conventional fixed-end ball valve, a true union design uses union connections on both sides of the valve body. This allows the central valve body to be removed while the surrounding pipe connections remain in place.
That design is especially valuable in systems where future maintenance matters. Professional valve manufacturers highlight the ability to remove the valve without disturbing adjacent piping as one of the main advantages of true union construction.
The valve normally uses a rotating ball to control flow. Turning the handle approximately 90 degrees moves the ball between the open and closed positions, providing quick isolation when required.
For water treatment, irrigation, swimming pools, aquaculture, chemical processing, and general industrial piping, UPVC provides a lightweight and corrosion-resistant alternative to many traditional metal valve materials.
However, material selection should always be based on the actual fluid, temperature, pressure, and chemical concentration. PVC/UPVC is not compatible with every chemical, and chemical resistance generally decreases as temperature increases.
The biggest reason engineers and maintenance teams choose a UPVC Double Union Ball Valve is simple: maintenance without unnecessary pipework disruption.
With a conventional fixed valve, replacing the valve may require cutting the pipe or disconnecting other components. In contrast, a true union valve can normally be isolated, depressurized, and removed by loosening the two union connections.
This makes the design particularly useful in equipment skids, manifolds, treatment systems, irrigation installations, and other areas where future access is important.
1. Easier maintenance
The valve body can be removed for inspection, cleaning, repair, or replacement without dismantling the entire pipeline.
2. Reduced downtime
A serviceable valve can help maintenance teams complete repairs faster, especially when a replacement valve or cartridge is prepared in advance. Proper maintenance procedures should always include system isolation, depressurization, and drainage before servicing.
3. Lower long-term maintenance effort
Although a true union valve can have a higher initial cost than a basic fixed valve, its serviceability can reduce future labor and pipe reconstruction requirements.
4. Better installation flexibility
The removable union connections make the valve easier to position and service in compact piping arrangements.
5. Replaceable internal components
Depending on the valve design, seats, seals, and other internal components may be replaceable, extending the useful service life of the valve.
This maintenance advantage is also reflected in real-world installer discussions, where users specifically mention true-union valves as a way to make future replacement easier without cutting buried or hard-to-access pipe.
Choosing a ball valve should involve more than selecting the pipe diameter. The body material, pressure rating, valve seat, seal material, connection type, and operating temperature all affect suitability.
UPVC, or unplasticized polyvinyl chloride, is widely used in fluid handling because it is lightweight and offers good resistance to corrosion and many acids, alkalis, and salts.
It is commonly found in water treatment, irrigation, swimming pool, aquaculture, and compatible chemical handling systems.
However, UPVC has temperature limitations.
Pressure ratings vary by size and valve model.
For example, GF's PVC-U Type 375 true double-union ball valve is rated at PN16 for smaller sizes and PN10 for larger sizes in its published specification.
This illustrates why buyers should not assume that every UPVC ball valve has the same pressure rating across its complete size range.
Always check the manufacturer's pressure-temperature chart for the exact valve size and operating conditions.
PTFE is commonly used as a ball seat because of its low friction and chemical resistance. EPDM and FKM are also widely used as sealing materials, with selection depending on the fluid and operating conditions.
The correct combination should be selected according to:
Never select a seal material based only on the valve's name or body material.
The right valve depends on the installation environment and future maintenance requirements.
| Comparison | UPVC True Union Ball Valve | Standard Fixed UPVC Ball Valve |
|---|---|---|
| Valve removal | Easy removal from union connections | May require pipe disassembly or cutting |
| Maintenance | Highly service-friendly | More difficult after installation |
| Installation | Flexible and convenient | Simple but less serviceable |
| Long-term access | Excellent | Depends on pipe layout |
| Initial cost | Generally higher | Generally lower |
| Best for | Industrial, treatment, irrigation and serviceable systems | Simple fixed installations |
| Connection options | Socket, threaded and other options depending on model | Depends on valve design |
| Replacement | Central body can be serviced or replaced on compatible designs | Often requires more pipework work |
A true union valve is therefore not automatically the best choice for every pipeline. If a valve is installed in a simple, permanently accessible system where future maintenance is unlikely, a standard fixed valve may be sufficient.
For systems where downtime, accessibility, buried piping, equipment replacement, or regular servicing are important, the additional union connections can provide significant practical value.
The combination of UPVC construction and removable union connections makes this valve suitable for a wide range of fluid handling systems.

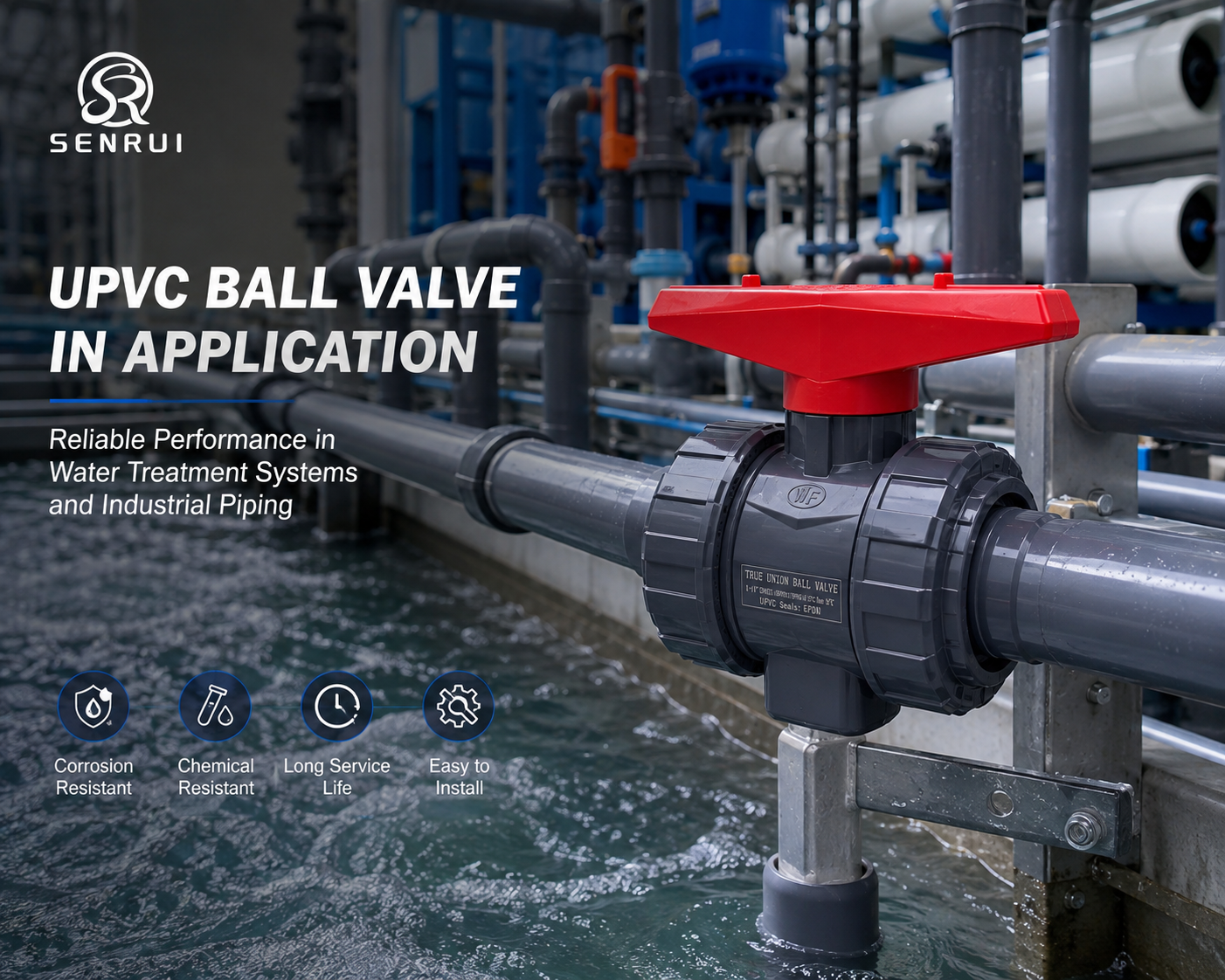

UPVC true union ball valves are commonly used for water distribution, filtration, purification, and treatment equipment. The corrosion-resistant construction is useful where metal corrosion could become a concern.
In agricultural and landscape irrigation, maintenance access is important because valves may need to be isolated or replaced without rebuilding an entire section of piping.
Pool filtration, circulation, dosing, and water feature systems often benefit from compact valves that are easy to isolate and service.
Aquaculture systems require dependable fluid control and convenient maintenance. UPVC valves can be used in compatible water-handling applications.
UPVC can be suitable for many compatible chemical fluids, but chemical compatibility must always be checked before installation. Some chemicals, including certain hydrocarbons, ketones, esters, and chlorinated hydrocarbons, can attack PVC.
Industrial piping systems can benefit from true union construction where valves need to be inspected, cleaned, or replaced periodically.
Before placing an order, buyers should provide more than just the pipe diameter.
Choose the correct nominal size or inch size based on the existing pipeline.
Common configurations include socket/solvent-weld, threaded, and other connection options depending on the manufacturer and product series.
Confirm the actual operating pressure and select a valve with an appropriate pressure rating at the required temperature.
Identify the exact medium, concentration, and temperature before selecting UPVC, EPDM, FKM, or PTFE components.
If the valve will be installed in a buried valve box, equipment skid, manifold, or difficult-to-access area, a true union design can provide substantial maintenance benefits.
One often-overlooked issue is that union dimensions and connection designs are not necessarily universal between different brands. Real-world users have reported compatibility problems when trying to replace only union components from another manufacturer.
For replacement projects, it is therefore safer to confirm the valve model, union dimensions, end connections, and manufacturer's compatibility information before ordering.
For piping systems where corrosion resistance, quick isolation, easy maintenance, and reduced future downtime matter, a UPVC True Union Ball Valve can be a practical and cost-effective solution.
