In underground oil and gas transportation projects, pipeline corrosion is one of the biggest challenges affecting safety, maintenance costs and service life. Traditional bare steel pipes may suffer from soil corrosion, moisture penetration and chemical attack after long-term operation.

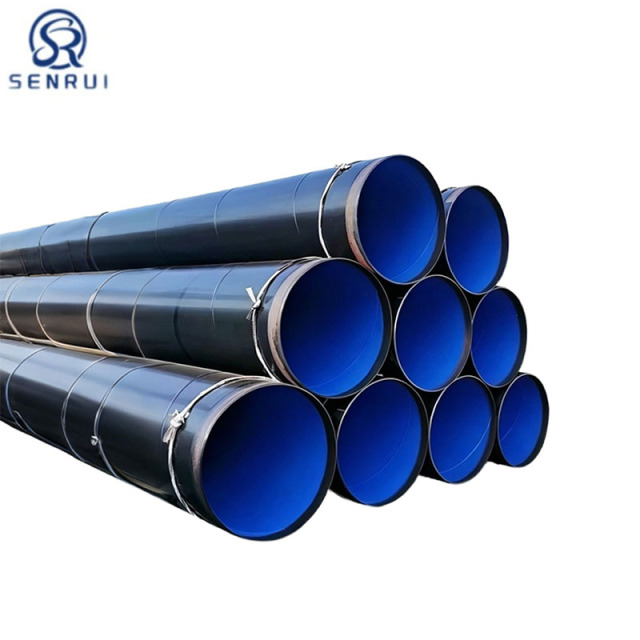

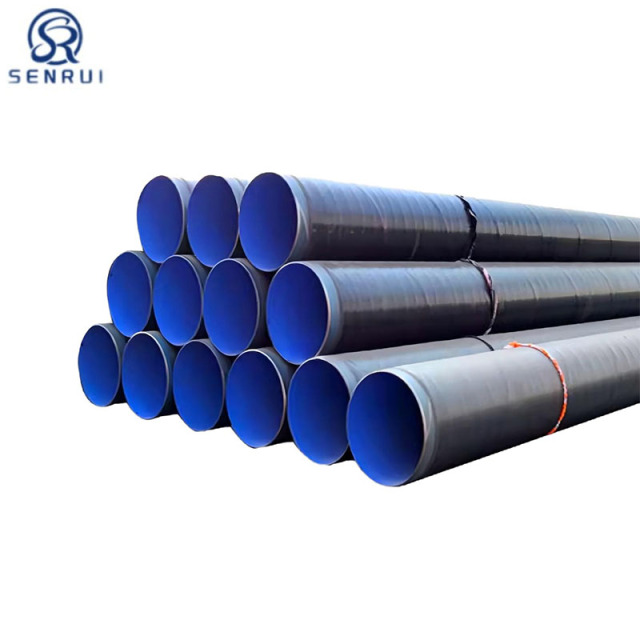

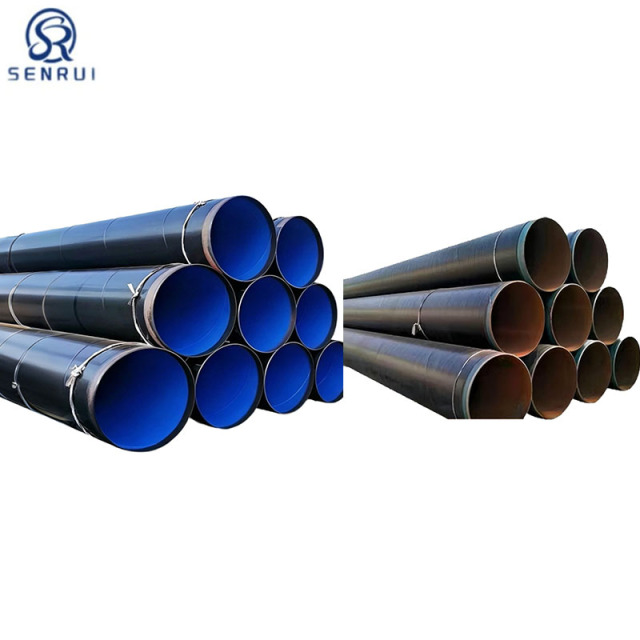

Our 3PE Anti-Corrosion Steel Pipe adopts advanced three-layer polyethylene coating technology, combining FBE epoxy powder, adhesive layer and HDPE outer protection to provide superior corrosion resistance and mechanical durability.
Designed for oil, gas, water transmission and chemical pipeline systems, our 3PE coated steel pipes help customers reduce maintenance frequency and achieve reliable pipeline performance in harsh environments.
| Item | Specification |
|---|---|
| Product Name | 3PE Anti-Corrosion Steel Pipe |
| Pipe Type | Seamless / ERW / SSAW / LSAW |
| Base Material | Carbon Steel |
| Steel Grade | API 5L Gr.B, X42, X52, X60, X65, X70 |
| Coating Structure | FBE + Adhesive + HDPE |
| Coating Thickness | 2.0mm - 4.5mm |
| Standard | API 5L, ISO 21809-1, DIN 30670 |
| Diameter Range | Customized |
| Length | 6m / 12m or Customized |
| Application | Oil, Gas, Water, Chemical Pipeline |
The 3PE coating system creates multiple protection barriers:
3PE coated steel pipes are widely used in:
The coating structure provides reliable protection in environments with high humidity, corrosive soil and mechanical stress.
| Comparison Item | 3PE Anti-Corrosion Steel Pipe | Epoxy Coated Steel Pipe (FBE) |
|---|---|---|
| Corrosion Protection Method | Three-layer polyethylene coating system (FBE + adhesive + PE outer layer) | Fusion bonded epoxy coating |
| Corrosion Resistance | Excellent resistance against soil corrosion, chemicals, moisture and salt spray | Good corrosion resistance but lower mechanical protection |
| Service Life | 30-50 years depending on environment and application | 20-30 years |
| Mechanical Protection | Excellent abrasion resistance and impact resistance due to PE outer layer | Moderate mechanical protection, coating is relatively brittle |
| Temperature Resistance | Suitable for approximately -40℃ to +80℃ (depending on coating grade) | Usually up to about +100℃ |
| Installation Environment | Underground pipelines, oil & gas transmission, water supply, chemical pipelines | Oil pipelines, water pipelines, industrial applications |
| Resistance to Soil Stress | Excellent, suitable for buried pipeline systems | Moderate, coating may crack under stress |
| Maintenance Requirement | Low maintenance cost due to long-term protection | Requires regular inspection in harsh environments |
| Cost Performance | Higher initial cost but lower lifecycle cost | Medium initial cost with moderate durability |
| Typical Applications | Oil & gas pipelines, water transmission, LNG projects, chemical plants, municipal engineering | Oil pipelines, industrial water systems, refinery pipelines |
To ensure reliable pipeline performance, each pipe can be inspected through:
✔ Raw material chemical analysis
✔ Mechanical property testing
✔ Pipe dimension inspection
✔ Coating thickness measurement
✔ Adhesion test
✔ Holiday detection test
✔ Hydrostatic testing
✔ Third-party inspection support
A:3PE anti-corrosion steel pipe is a carbon steel pipe coated with three layers of polyethylene protection, including FBE epoxy, adhesive and HDPE layers, designed to prevent corrosion.
A:FBE provides excellent corrosion resistance, while 3PE adds an additional polyethylene protective layer for better mechanical protection and longer underground service life.
A:Common standards include API 5L, ISO 21809-1, DIN 30670 and related pipeline coating specifications.
A:They are mainly used for oil pipelines, natural gas transmission, water supply pipelines and chemical transportation systems.
A:Yes. Diameter, wall thickness, steel grade, pipe length and coating thickness can be customized according to project requirements.
A:Service life depends on environment, coating quality, installation conditions and pipeline operation requirements. Properly manufactured 3PE pipelines can provide decades of corrosion protection.
A:Yes. Material certificates, inspection reports and third-party inspection support can be provided according to customer requirements.
Contact us today for customized 3PE Anti-Corrosion Steel Pipe solutions with API standards, competitive pricing and reliable quality support.
