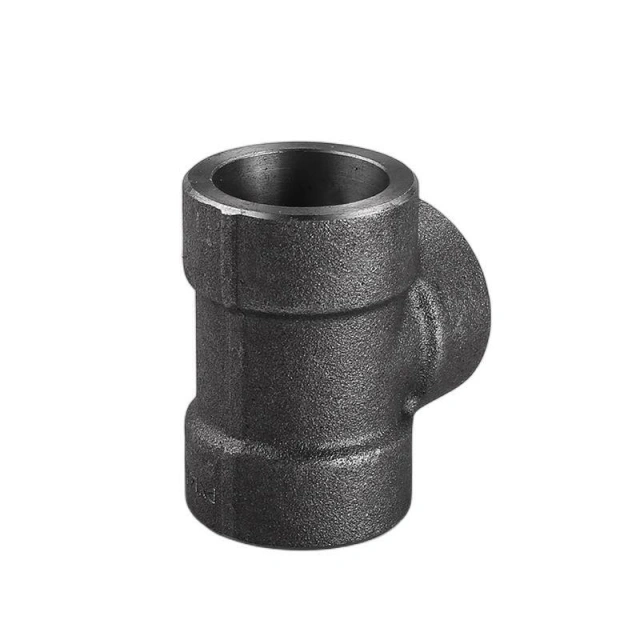

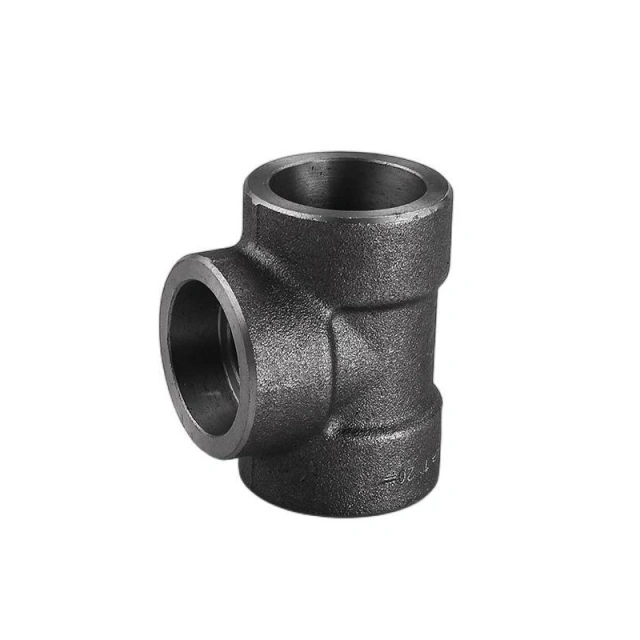

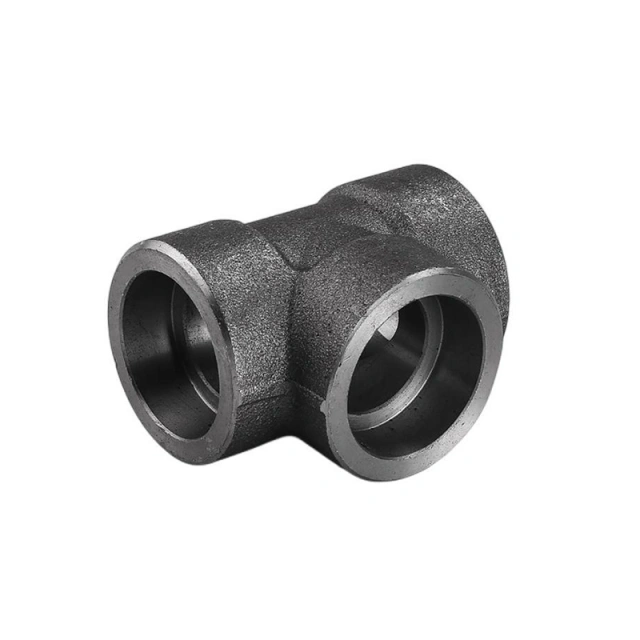

CS SW Tee is a forged carbon steel socket weld pipe fitting designed to branch pipelines in high-pressure small bore piping systems. Socket weld ends provide a strong, leak-free connection, easy installation, and high structural integrity. Ideal for oil & gas, petrochemical, refinery, power plant, and industrial piping networks.
As a professional CS SW Tee manufacturer and supplier, we deliver high-quality forged carbon steel tees to EPC contractors, distributors, and stockists in the Middle East.
Socket weld tees are preferred over threaded or butt-weld fittings in small bore high-pressure applications, ensuring long-term safety, minimal leakage, and stable pipeline performance.
| Specification | Range / Description |
|---|---|
| Product Type | Forged Carbon Steel Socket Weld Tee |
| Standard | ASME B16.11, MSS SP-75, BS 3799 |
| Material | ASTM A105, ASTM A105N, ASTM A350 LF2, Alloy Steel F11/F22, SS F304/F316 |
| Size Range | 1/2" – 24" (DN15 – DN600) |
| Pressure Class | Class 3000 / 6000 / 9000 lb |
| Connection Type | Socket Weld (SW) |
| Form | Equal Tee / Reducing Tee |
| Surface Finish | Black Painting, Anti-Rust Oil, Galvanized, Sandblasting |
| Certification | EN10204 3.1 Mill Test Certificate |
All CS SW Tees are supplied with full traceability, ensuring compliance with international standards and project specifications.
Carbon Steel: ASTM A105, ASTM A105N
Low Temperature CS: ASTM A350 LF2
Optional Materials: Alloy Steel F11/F22, Stainless Steel F304/F316/F316L
Certifications: EN 10204 3.1 Mill Test Certificate, PMI report, NDT testing as requested
Raw material inspection and chemical composition analysis
Closed die forging for superior grain structure
Heat treatment (normalizing/quenching/tempering) for enhanced mechanical properties
CNC precision machining of socket bore
Surface treatment: black painting, anti-rust oil, galvanization, sandblasting
Dimensional inspection and NDT testing (UT, MT, PMI)
This process ensures dense internal structure, high mechanical strength, excellent fatigue resistance, and long service life in cyclic pressure pipelines.
CS SW Tee is widely used in critical small bore pipelines, including:
Oil & gas transmission pipelines and branch connections
Petrochemical and refinery process lines
High-pressure steam pipelines in power plants
Industrial fluid distribution and chemical plants
Offshore and onshore EPC contractor stock & maintenance projects
Maintenance replacement projects in small diameter high-pressure networks
Socket weld tees are particularly valuable for high-pressure branch pipelines, corrosion-resistant installations, and EPC or distributor stock.
We supply CS SW Tees to stockists, distributors, and EPC contractors in:
UAE, Saudi Arabia, Qatar, Kuwait, Oman
Fast quotation and bulk project production available
Middle East stockists benefit from pre-stocked sizes and custom orders
Competitive pricing for large projects while maintaining full certification compliance
High-strength forged carbon steel construction for high-pressure pipelines
Socket weld ends for secure, leak-free installation
Wide size range: 1/2" – 24" (DN15–DN600)
Pressure class up to 9000 lb
Strict NDT and dimensional quality control
Fully traceable material certification (EN 10204 3.1, PMI, UT/MT)
Experienced exporter to Middle East EPC and industrial projects
Looking for CS SW Tee supplier or manufacturer?
Send your inquiry with:
Size / DN
Pressure Class (3000 / 6000 / 9000)
Material Grade (CS / Alloy / SS)
Quantity / Order Type (Stock / Project Bulk)
We respond fast and provide competitive quotations with full certification.
