Surface water accumulation can damage pavement, create slippery surfaces and increase the risk of flooding around roads, buildings and industrial facilities. A properly designed drainage grate provides an important connection between surface runoff and the underground drainage system.

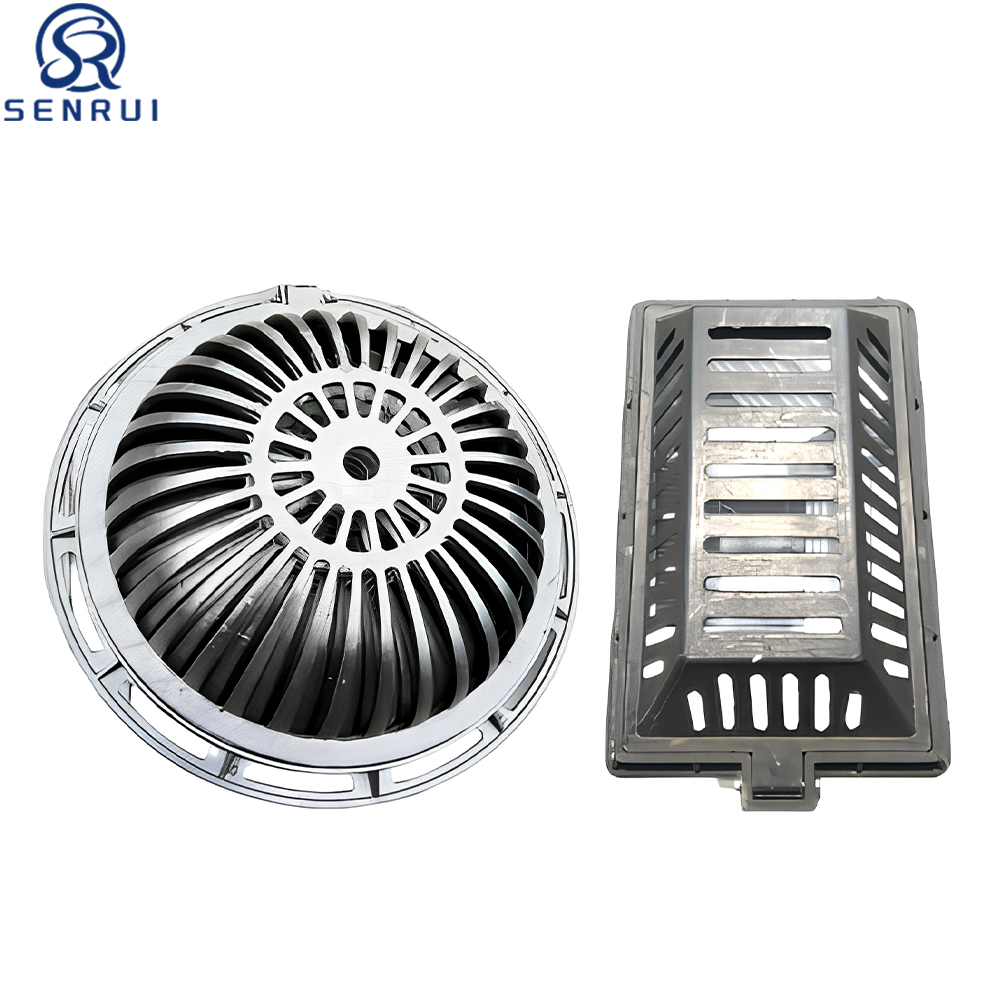

The Drain Dome Grate is designed to collect rainwater and surface runoff efficiently and direct it into drainage channels, catch basins or underground pipelines.
Its raised dome structure allows water to approach the grate from multiple directions, while the drainage openings help limit the entry of larger leaves, stones and debris.
Manufactured from ductile iron or cast iron, the Drain Dome Grate can provide the strength and durability required for outdoor drainage applications.
| Item | Specification |
|---|---|
| Product Name | Drain Dome Grate |
| Material | Ductile Iron / Cast Iron |
| Manufacturing Process | Casting |
| Shape | Dome / Raised Grate |
| Surface Treatment | Black Bitumen Coating / Customized |
| Drainage Function | Surface Water Collection & Drainage |
| Grate Type | Dome Grate/Square Grate |
| Installation | Drainage Pit / Catch Basin / Drainage System |
| Application | Municipal, Road, Commercial, Industrial |
Used to collect rainwater and surface runoff from roads, curbs, roadside areas and transportation infrastructure.
Suitable for parking lots, garages and vehicle access areas where efficient surface water drainage is required.
Used in urban stormwater collection systems, drainage pits, catch basins and municipal infrastructure projects.
Suitable for factories, workshops, warehouses, logistics centers and industrial yards exposed to outdoor water runoff.
Can be installed around shopping centers, office buildings, commercial complexes and public facilities.
Used in sidewalks, plazas, pedestrian zones and other public areas to help reduce standing water.
Suitable for parks, gardens, landscaped areas and recreational facilities requiring surface water management.
| Feature | Ductile Iron | Standard Cast Iron |
| Mechanical Strength | High | Moderate |
| Impact Resistance | Excellent | Good |
| Load-Bearing Applications | Suitable | Application Dependent |
| Durability | Excellent | Good |
| Outdoor Applications | Excellent | Good |
| Custom Design | Available | Available |
| Heavy-Duty Applications | Recommended | Depending on Design |
Ductile iron is widely used for heavy-duty drainage components because of its high strength, toughness and resistance to impact and deformation.
For applications exposed to vehicle traffic, industrial equipment or harsh outdoor environments, ductile iron can provide a reliable balance between structural strength and long-term durability.
Ductile iron is generally preferred when higher mechanical strength and impact resistance are required.
Ductile iron provides excellent mechanical strength, toughness and impact resistance, making the grate suitable for demanding outdoor drainage environments.
The raised dome structure provides an effective water collection surface and allows runoff to enter from different directions.
The robust cast structure is suitable for areas exposed to pedestrian traffic, vehicles, maintenance equipment and other external loads.
Black bitumen coating, epoxy coating and other protective finishes can be provided according to application and environmental requirements.
Grate dimensions, frame dimensions, dome height, drainage openings and other specifications can be customized.
Choosing the correct Drain Dome Grate depends on several factors.
First determine whether the grate will be installed in a pedestrian area, parking lot, road, industrial yard or municipal drainage system.
The expected external load should be considered before selecting the grate structure and load rating.
The grate size should match the drainage opening and required water collection capacity.
Ductile iron is recommended for applications requiring higher strength, toughness and impact resistance.
For outdoor or corrosive environments, an appropriate protective coating can be selected according to project conditions.
For customized projects, provide drawings, dimensions, required quantity, application information and load requirements to receive a suitable product recommendation.
A:A Drain Dome Grate is a drainage component designed to collect rainwater and surface runoff and direct it into a drainage pit, catch basin or underground drainage system.
A:Drain Dome Grates are commonly manufactured from ductile iron or cast iron. Ductile iron is recommended for applications requiring higher strength and impact resistance.
A:They can be used in roads, parking areas, sidewalks, municipal drainage systems, industrial facilities, commercial properties, parks and landscaped areas.
A:Yes. Dimensions, frame size, drainage opening design, surface coating, markings and other specifications can be customized.
A:Yes. OEM production based on customer drawings, samples and technical specifications is available.
A:For an accurate quotation, customers can provide the required dimensions, material, load requirement, quantity, application, drawings or product photos.
A:Common options include black bitumen coating, epoxy coating and customized protective coatings.
Every drainage project may have different requirements for dimensions, load capacity, material, drainage openings and installation conditions.
Send us your drawing, dimensions, product photos or project requirements, and our team can recommend a suitable Drain Dome Grate configuration.
