Product Overview

Ductile Iron Drainage Grates are designed for efficient surface water collection and drainage in roads, streets, sidewalks, parking areas, municipal projects, and industrial facilities. Manufactured from durable ductile iron, these drainage grates provide reliable structural support and resistance to repeated pedestrian and vehicle loads.

Our product range includes Round Stormwater Drainage Grates, Square Single-Piece Drainage Grates, and Hinged Drainage Grates. Different sizes, load ratings, frame configurations, surface patterns, and coatings can be customized according to project requirements.

Product Types

Round Stormwater Drainage Grate	Square Single-Piece Drainage Grate	Hinged Drainage Grate
The Round Stormwater Drainage Grate is designed to collect rainwater and surface runoff and direct it into underground drainage systems.Its round structure is suitable for various stormwater collection points and drainage installations. Key Features Round drainage grate design Durable ductile iron construction Anti-slip surface pattern Stable supporting frame Efficient surface water collection Suitable for outdoor environments Standard and customized sizes available Applications Stormwater drainage Urban roads Residential streets Parking areas Sidewalks Municipal drainage systems Public infrastructure	The Square Single-Piece Drainage Grate is a compact drainage solution designed for surface water collection in roads, pedestrian areas, drainage channels, and other infrastructure applications.The one-piece structure provides a simple installation configuration and convenient handling. Key Features Square design Single-piece construction Ductile iron material Anti-slip surface Stable structure Efficient water drainage Multiple sizes available Custom designs available Applications Roadside drainage Sidewalks Parking lots Residential areas Commercial areas Municipal engineering Industrial facilities	The Hinged Drainage Grate features a hinged connection between the grate and frame. This design keeps the grate connected to the drainage structure when opened and provides convenient access for inspection and cleaning. Key Features Hinged grate and frame Convenient opening and closing Reduced risk of grate loss Durable ductile iron construction Anti-slip surface Stable frame support Suitable for maintenance-access areas Customized dimensions available Applications Urban drainage systems Road drainage Stormwater collection Municipal drainage channels Industrial drainage Parking areas Areas requiring regular inspection

Material

Ductile Iron Construction

Our drainage grates are manufactured primarily from ductile iron, which is widely used for road and drainage infrastructure because of its combination of strength, toughness, and durability.

Ductile iron provides good resistance to impact and repeated loading, making it suitable for outdoor drainage applications exposed to pedestrians and vehicles.

Material Advantages

• High mechanical strength
• Good impact resistance
• Strong load-bearing capability
• Durable outdoor performance
• Suitable for repeated traffic loads
• Good structural stability
• Suitable for casting complex designs

Material grades and mechanical requirements can be specified according to customer drawings, applicable standards, and project requirements.

Technical Parameters

Product Features

Anti-Slip Surface

Raised surface patterns can improve traction and provide a more stable surface when exposed to rainwater or wet conditions.

Efficient Drainage

The grate opening design allows surface water to enter the drainage system while maintaining a practical surface for pedestrians and vehicles.

Stable Frame Support

The supporting frame provides a stable seating area for the grate and helps transfer loads to the surrounding drainage structure.

Hinged Connection

The hinged design keeps the grate connected to the frame during opening and maintenance, making inspection and cleaning more convenient.

Durable Ductile Iron

The ductile iron construction provides strength and durability for demanding outdoor and infrastructure applications.

Application Scenarios

Road Drainage

Used along urban roads and streets to collect rainwater and surface runoff.

Stormwater Systems

Suitable for stormwater collection points, drainage channels, and municipal water management systems.

Sidewalks & Pedestrian Areas

Suitable for sidewalks, plazas, pedestrian areas, and public spaces requiring surface drainage.

Parking Areas

Used in residential and commercial parking lots for surface water collection.

Municipal Infrastructure

Suitable for urban drainage systems, municipal roads, public facilities, and infrastructure projects.

Industrial Facilities

Can be used in factories, warehouses, logistics centers, industrial parks, and other areas requiring durable drainage solutions.

How to Choose the Right Drainage Grate?

When selecting a ductile iron drainage grate, consider:

Installation Location

Determine whether the grate will be installed in a pedestrian area, parking lot, road, industrial facility, or other vehicle-accessible location.

Size

Confirm the drainage opening and required frame dimensions.

Load Rating

Select the appropriate structural configuration according to expected pedestrian and vehicle loads.

Drainage Capacity

Consider the required water flow and drainage opening design.

Grate Type

Choose between:

• Round Stormwater Drainage Grate

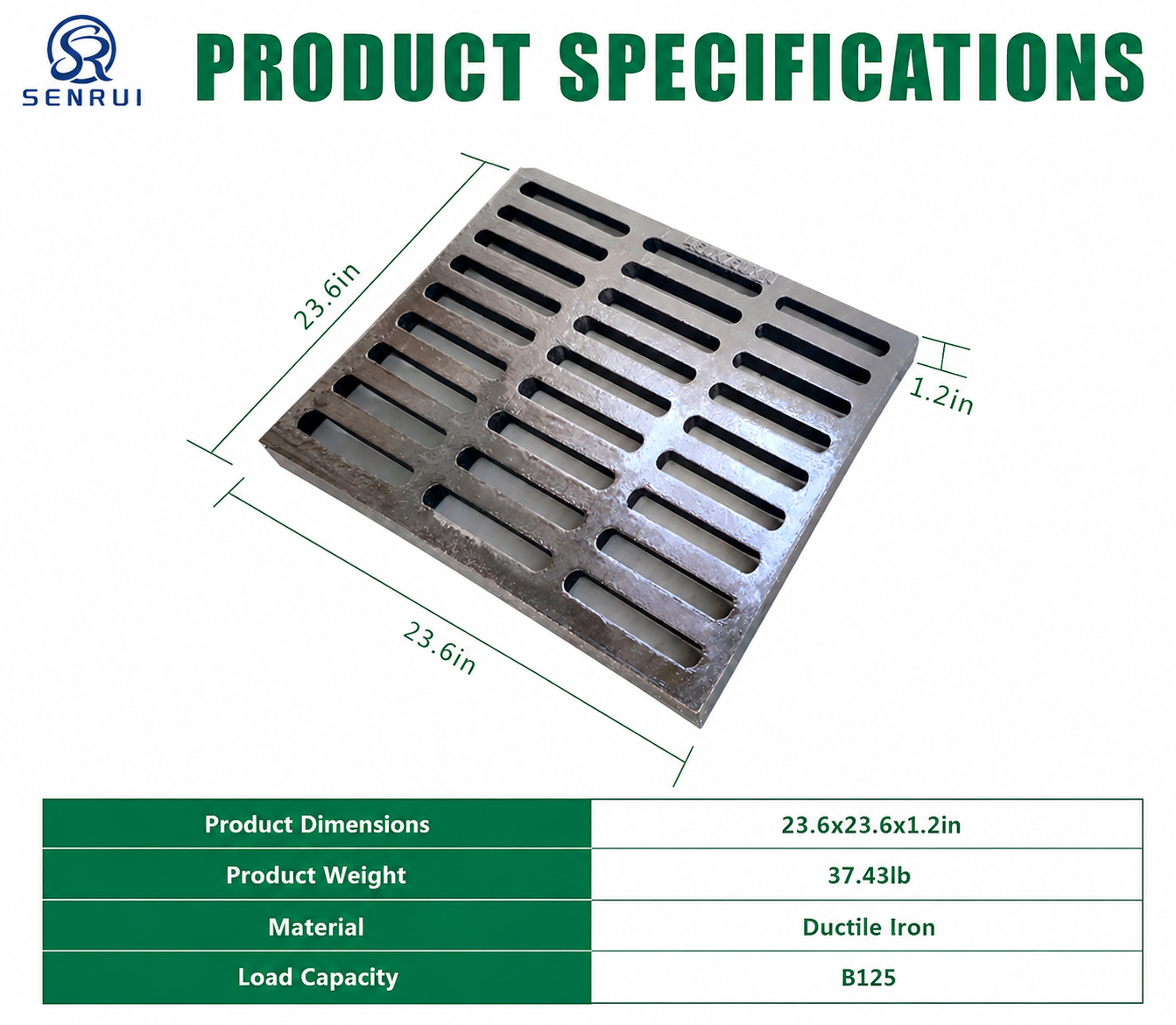

• Square Single-Piece Drainage Grate
• Hinged Drainage Grate

Maintenance Requirements

For locations requiring frequent inspection and cleaning, a hinged drainage grate can provide more convenient access.
