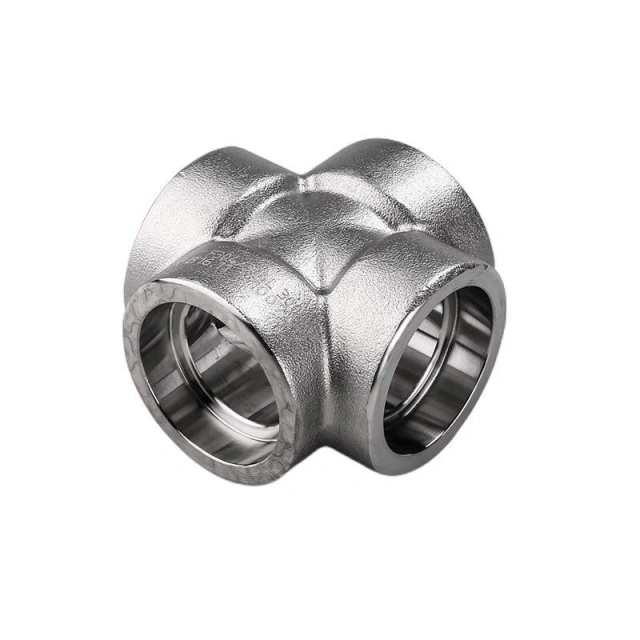

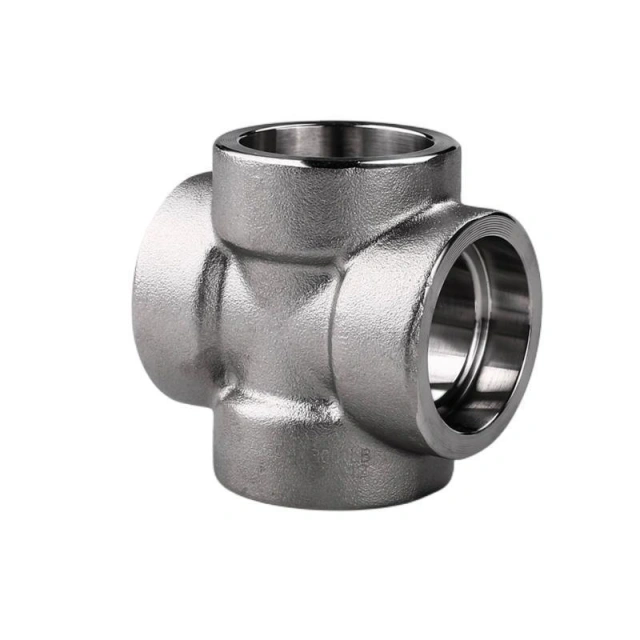

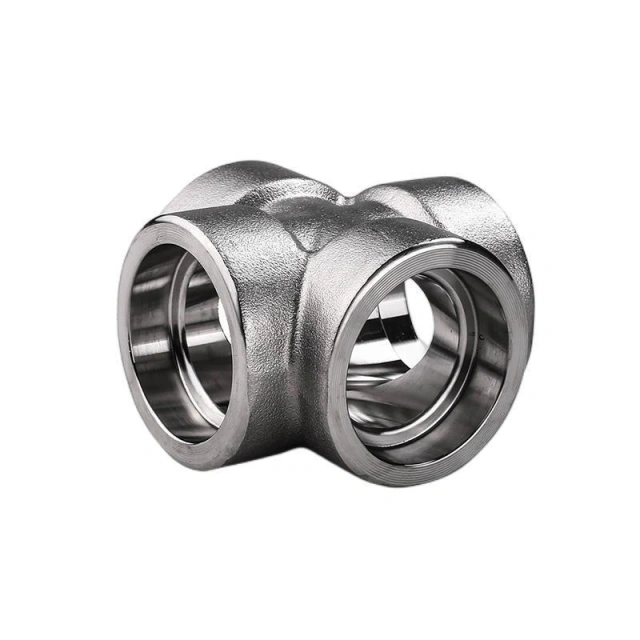

Forged Socket Weld Cross is a high-pressure pipe fitting designed to connect four pipe ends at 90-degree angles in compact piping systems. It is widely used in oil and gas, petrochemical, power generation, shipbuilding, offshore engineering, and other industrial applications where strength, sealing performance, and reliability are critical.
Compared with cast fittings, forged socket weld crosses offer a denser internal structure, improved mechanical strength, and better resistance to pressure and impact. They are produced from high-quality forged steel and machined with precision to ensure accurate dimensions and stable performance.
As a professional forged socket weld cross manufacturer, we supply standard and custom fittings according to project requirements, with strict quality control from raw material selection to final inspection.
| Item | Details |
|---|---|
| Product Name | Forged Socket Weld Cross |
| Type | Forged Pipe Fitting |
| Connection Type | Socket Weld |
| Shape | Cross |
| Size Range | 1/8" to 4" |
| Pressure Class | 2000 / 3000 / 6000 / 9000 LBS |
| Standards | ASME B16.11, MSS SP-79, MSS SP-83, MSS SP-95, MSS SP-97, BS3799 |
| Manufacturing Process | Forging, Heat Treatment, CNC Machining |
| Surface Treatment | Black Painting, Anti-Rust Oil, Sand Blasting, Pickling, Polishing |
| End Connection | Socket Weld |
| Inspection | Dimensional Check, PMI, Mechanical Test, Pressure Test, Third-Party Inspection Available |
| Packaging | Wooden Case, Pallet, Carton, or Customized Packaging |
| Application | Oil & Gas, Petrochemical, Power Plant, Marine, Offshore, Industrial Piping Systems |
| Material Type | Common Grades |
|---|---|
| Carbon Steel | ASTM A105, LF2 |
| Stainless Steel | ASTM A182 F304, F304L, F316, F316L |
| Alloy Steel | ASTM A182 F11, F22 |
| Duplex Steel | ASTM A182 F51, F53, F55 |
| Nickel Alloy | Monel, Inconel, Hastelloy |
| Special Materials | Available upon request |
Our forged socket weld crosses are manufactured through a controlled production process to ensure stable quality and long service life:
Raw Material Selection
→ Heating
→ Closed Die Forging
→ Heat Treatment
→ CNC Machining
→ Surface Finishing
→ Dimensional Inspection
→ Final Packing
This process helps improve grain flow, reduce internal defects, and enhance overall product strength.
We follow strict inspection procedures to make sure every forged socket weld cross meets technical and project requirements.
Forged socket weld crosses are widely used in:
Forging provides a more compact internal structure than casting, which helps improve product reliability in demanding service conditions. The socket weld connection is especially suitable for small-diameter pipelines that require a strong and leak-resistant joint.
Our products are designed for applications where pressure stability, long service life, and dimensional accuracy are essential.
We support custom production based on drawings, specifications, and project requirements.
Available customization includes:
If you need a specific standard or non-standard forged socket weld cross, our engineering team can evaluate and support your request.
We provide professional export packaging to help protect products during transportation and storage. Packaging options can be customized according to customer requirements and shipping conditions.
Fast quotation and project-based production are available for global buyers, distributors, and engineering contractors.
What is a forged socket weld cross used for?
It is used to connect four pipe sections at right angles in high-pressure piping systems.
What is the difference between forged and cast socket weld crosses?
Forged fittings generally have better internal density, higher strength, and improved reliability compared with cast fittings.
Can you supply custom sizes or materials?
Yes, custom sizes, materials, and technical requirements are supported based on drawings or specifications.
Do you offer third-party inspection?
Yes, third-party inspection can be arranged according to customer needs.
Looking for a reliable forged socket weld cross manufacturer for your project?
Send us your drawing, material requirement, size, and pressure class to get a fast quotation.
