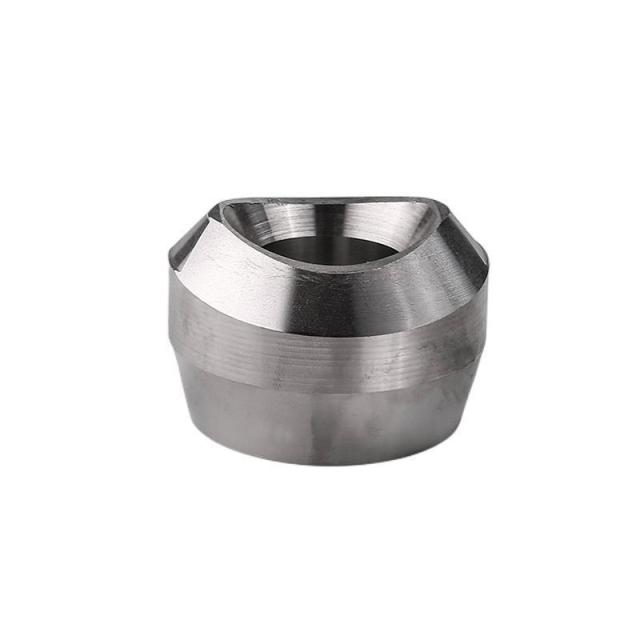

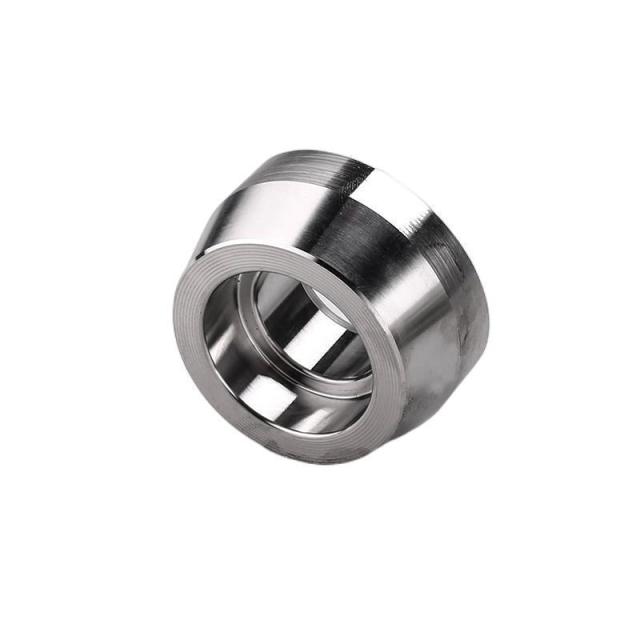

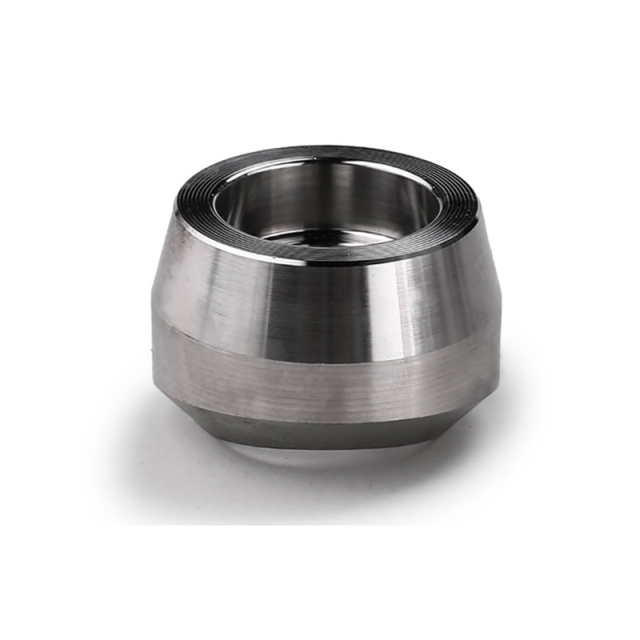

The High Pressure Socket Weld Pipe Support Saddle is designed to provide stable and reliable support for branch pipes in high-pressure industrial piping systems.
Manufactured from forged steel and precision-machined, this pipe support saddle ensures excellent load-bearing capacity, dimensional accuracy, and long-term service performance.
It is widely used in oil & gas, petrochemical, power generation, chemical processing, and other high-pressure pipeline applications, especially where compact installation and strong structural support are required.
Product Type
Socket Weld Pipe Support Saddle / Forged Pipe Support
Size Range
1/8" (DN6) – 4" (DN100)
Pressure Class
3000 LBS / 6000 LBS / 9000 LBS
Connection Type
Socket Welding / Threaded
Applicable Pipe
Branch pipe support for high-pressure piping systems
Manufacturing Process
Forging → Heat Treatment → CNC Machining
Surface Treatment
Sand Blasting, Cold Galvanized, Hot Dip Galvanized
Manufacturing Standards
ASME B16.11
BS 3799
JIS B2316
GB/T 14383
SH 3410
HG/T 21634
The socket weld pipe support saddle is available for branch pipe sizes from DN8 to DN125, with pressure ratings up to 9000 LBS.
Dimensions such as overall height, socket depth, wall thickness, and bore size are manufactured in accordance with applicable standards and customer requirements.
Detailed dimensional tables for Class 3000 / 6000 / 9000 are available upon request.
Carbon Steel
ASTM / ASME A105, A350 LF2, LF6, 20#, Q235, Q345
Stainless Steel
ASTM F304, F304L, F316, F316L
Duplex & Super Duplex Steel
ASTM A182 F51, F53, F55, S31803, S32205, S22053
Alloy Steel
ASTM F5, F9, F11, F22, F91
Copper Alloy
ASTM / ASME SB466 UNS C70600, C71500
Nickel Alloy
ASTM / ASME SB336, SB564, SB160, SB163, SB472
Nickel 200 / 201, Monel 400, Inconel 600 / 601 / 625 / 825, Hastelloy C276
Oil & Gas transmission pipelines
Petrochemical and refinery systems
Power generation plants
Chemical processing pipelines
High pressure industrial piping systems
Forged steel structure for high mechanical strength
Suitable for high pressure and high temperature service
Compact design for space-limited installations
Excellent dimensional accuracy and weldability
Compliant with international standards
