Product Name: Tee
Product Type: Butt Weld Pipe Fitting – Equal Tee / Reducing Tee
Size Range: DN15 (1/2") – DN3600 (144")
Wall Thickness: SCH 10 – SCH XXS (as required)
Connection Type: Butt Weld
Manufacturing Process: Hot Forming / Cold Forming + Heat Treatment
Application: Oil & Gas Pipelines, Petrochemical Plants, Power Generation, Chemical Processing, Water & Industrial Process Systems
Inspection: Dimensional Inspection, PMI, UT, MT, RT (as required)
A pipe tee is a pipe fitting used to combine or divide fluid flow in pipeline systems.
It features one inlet and two outlets arranged at a 90-degree angle, allowing branch connections from the main pipeline.
Pipe tees are essential components in industrial piping systems, providing reliable flow distribution while maintaining pressure integrity under demanding operating conditions.

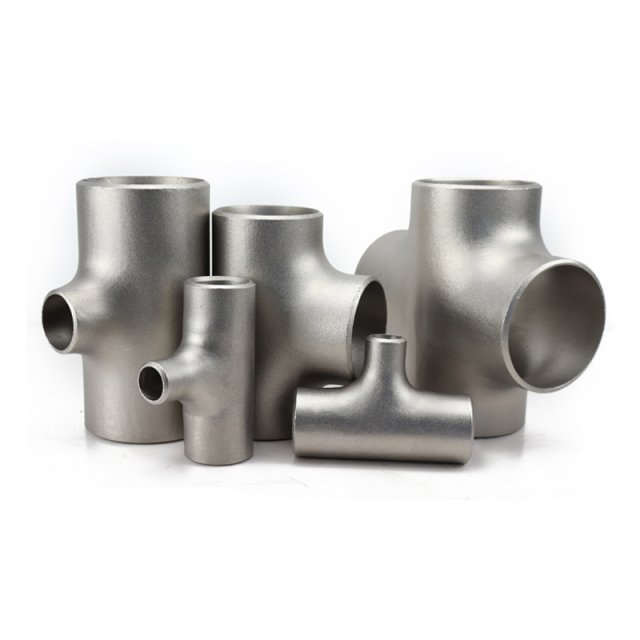

Depending on the pipeline design, tees are available as equal tees or reducing tees to meet different flow and layout requirements.
Equal Tee – Main pipe and branch pipe have the same diameter

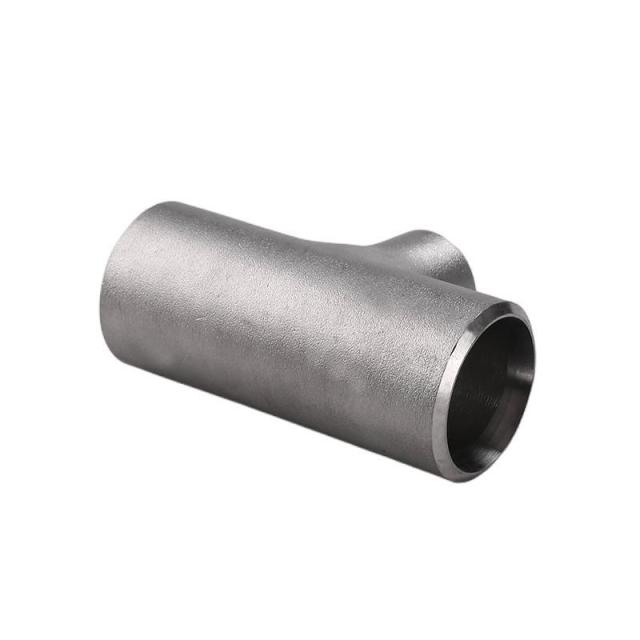

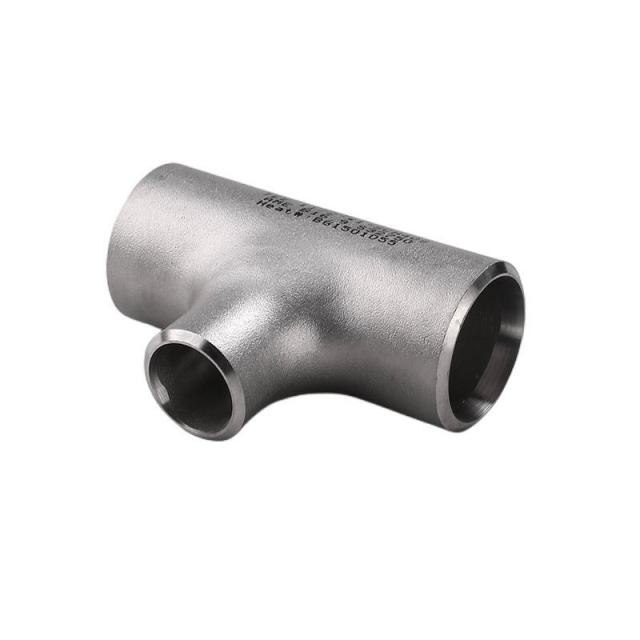

Reducing Tee – Branch pipe has a smaller diameter than the main pipe
Both types are widely used in high-pressure and high-temperature pipeline systems.
| Specification | Range |
|---|---|
| Nominal Size | DN15 (1/2") – DN3600 (144") |
| Wall Thickness | SCH 10 – SCH XXS |
| Connection | Butt Weld |
Suitable for medium to high-pressure pipeline systems and large-diameter applications.
Manufactured in accordance with major international standards:
ASME / ASTM
ASME B16.9
ASTM A234 / A350 / A403 / A420 / A860
ASTM A815 / ASTM B366 / ASTM B363
European Standards
EN 10253-2 / EN 10253-3 / EN 10253-4
DIN 2609-1 / DIN 17175
Pipeline & Project Standards
MSS SP-75 / SP-95 / SP-97
API 5L
Chinese Standards
GB/T 12459
SH/T 3408 / SH/T 3410
GB/T 13401 / GB/T 14383 / GB/T 35072
Compatible with global pipeline systems and EPC project specifications.
ASTM A234 WPB / WPC
ASTM A350 LF2
ASTM A420 WPL3 / WPL6 / WPL8
ASTM A234 WP5 / WP9 / WP11 / WP22 / WP91
ASTM A860 WPHY 42 / 46 / 52 / 60 / 65 / 70
ASTM A335 P5 / P9 / P12 / P91
ASTM A403 WP304 / WP304L / WP316 / WP316L
ASTM A403 WP321 / WP347 / WP310
ASTM A815 S31803 / S32205 / S32750 / S32760
ASTM B366 (Inconel, Monel, Hastelloy)
ASTM B363 Titanium grades
All materials are supplied with Mill Test Certificates (MTC) and full traceability.
• Raw material inspection
• Hot forming or cold forming
• Heat treatment
• End beveling & machining
• Surface finishing
• Dimensional inspection & NDT
Ensuring accurate dimensions, uniform structure, and long-term reliability.
Each pipe tee undergoes strict quality inspection:
• Dimensional inspection
• Chemical composition analysis
• PMI (Positive Material Identification)
• Ultrasonic Testing (UT)
• Magnetic Particle Testing (MT)
• Radiographic Testing (RT), if required
• Oil & gas transmission pipelines
• Petrochemical and chemical processing plants
• Power generation systems
• Pressure vessel piping
• Water treatment and industrial process pipelines
Pipe tees are fundamental components for pipeline branching and flow distribution.
• Full size range up to DN3600 (144")
• Wide material selection for diverse service conditions
• Compliance with ASME, ASTM, EN, DIN, and GB standards
• Suitable for high-pressure and critical pipeline systems
• Stable quality for long-term industrial use
