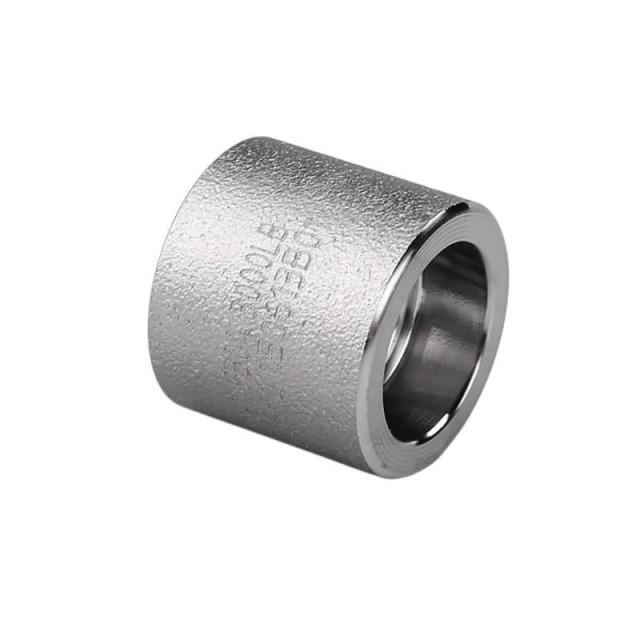

Our stainless steel high pressure socket welding reducer hoops are precision-forged fittings designed to connect pipes of different diameters in high-pressure industrial pipelines. They provide secure socket weld or threaded connections, precise alignment, and excellent pressure resistance.
Manufactured according to ASME B16.11, BS 3799, JIS B2316, GB/T 14383 and other international standards, these reducer hoops are widely used in oil & gas, petrochemical, power generation, offshore, and industrial pipelines, where reliable high-pressure performance is critical.
Forged construction ensures high mechanical strength and durability
Suitable for Class 3000, 6000, 9000 high-pressure systems
Compact socket weld or threaded connection for easy installation
Reduces leakage risk compared to other connection types
Corrosion-resistant and suitable for high-temperature environments
CNC machining & precise dimensional control ensures reliable socket fit
| Nominal Size | Inch | Pressure Rating | Connection | Notes |
|---|---|---|---|---|
| DN6–DN100 | 1/8"–4" | ASME Class 3000 / 6000 / 9000 | Socket Weld (SW) / Threaded (NPT, BSP) | Full range for industrial pipelines |
Socket inside diameter (S / S1), Through hole diameter (D)
Socket depth (C / C1), Wall thickness (C / C1)
Ensures proper alignment, safe operation, and high-pressure performance
Stainless Steel: ASTM F304, F304L, F316, F316L
Duplex & Super Duplex: ASTM A182 F51, F53, F55; S31803, S22253, S32205, S22053
Nickel & Special Alloys: ASTM/ASME SB336, SB564, SB160, SB163, SB472; UNS N02200/201, N04400, N08825, N06600/601/625, N10276
Carbon & Alloy Steel: ASTM A105, A350 LF2–LF6, 20#, Q235, Q345
All materials come with Mill Test Certificates (MTC) and full traceability
Raw material inspection
Cutting and billet preparation
Die forging / Free forging
Heat treatment
CNC precision machining
Surface finishing
Dimensional inspection & NDT
Ensures high mechanical strength, dimensional accuracy, and long-term reliability
Dimensional inspection
Chemical composition analysis
PMI testing
Ultrasonic Testing (UT)
Magnetic Particle Testing (MT)
High-pressure oil & gas pipelines
Chemical and petrochemical piping systems
Power plant piping systems
Hydraulic and instrumentation pipelines
Offshore and marine industrial systems
Full size range DN6–DN100
Pressure ratings up to ASME Class 9000
Multiple material options: stainless, duplex, nickel alloys
Forged & CNC machined for precise socket weld / threaded connections
Full compliance with ASME, BS, JIS, GB standards
Trusted by global EPC, oil & gas, and industrial pipeline projects
Q: How to choose the right size reducer hoop?
A: Select based on pipe nominal diameter, pressure rating, and connection type (SW / Threaded).
Q: What materials are available?
A: Stainless steel, duplex, super duplex, nickel alloys, carbon & alloy steel – all with MTC certificates.
Q: Are these reducer hoops suitable for offshore pipelines?
A: Yes, they meet ASME/ASTM standards and are used in oil & gas, offshore, and high-pressure industrial systems.
