Introduction – Stainless Steel Threaded Pipe Plug

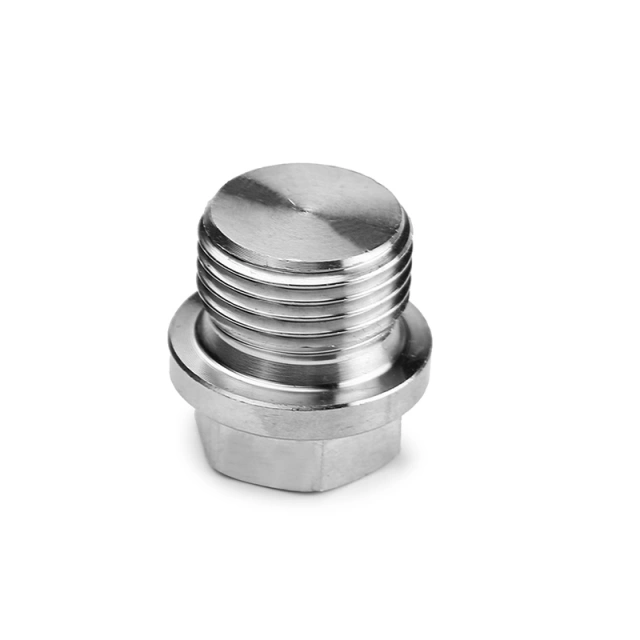

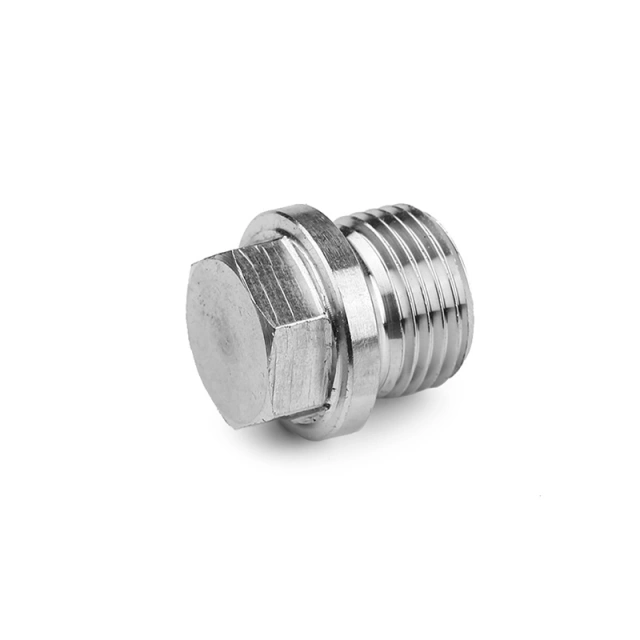

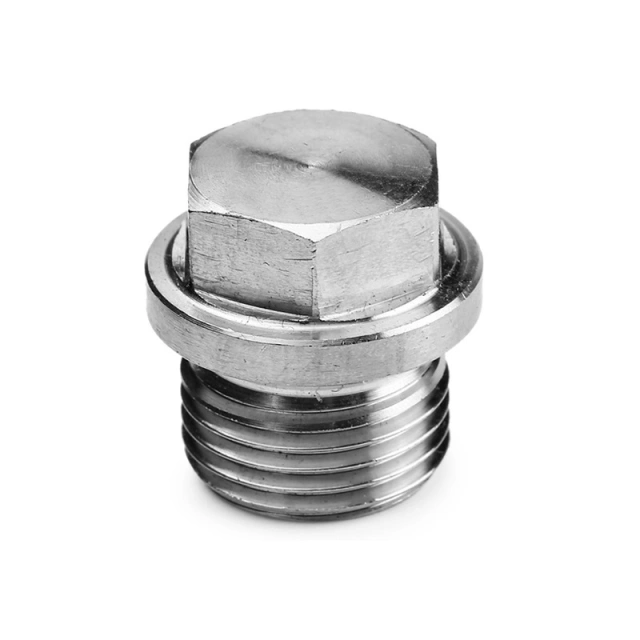

The forged stainless steel hex screw pipe plug is a high-pressure threaded pipe fitting designed to seal or close the end of female threaded pipelines, valves and instrumentation ports. Manufactured using precision closed-die forging and CNC thread machining, this industrial stainless steel pipe plug provides reliable leak-proof sealing performance, excellent corrosion resistance and long service life in demanding environments.
Available in NPT, BSPT and BSPP threaded connections, hex screw pipe plugs are widely used in oil & gas pipelines, petrochemical processing units, hydraulic systems, power generation plants and offshore piping installations where safe pipeline isolation and system maintenance are required.
Key Advantages of Forged Stainless Steel Pipe Plugs
- High mechanical strength from forged grain structure
- Precision machined threads ensuring tight sealing performance
- Hexagonal head design for easy installation and removal
- Suitable for high pressure and vibration-intensive systems
- Excellent resistance to corrosion, oxidation and chemical attack
- Wide pressure rating availability for industrial applications
Forged threaded pipe plugs perform better than machined plugs in critical pipeline systems where pressure fluctuations and temperature variation occur.
Technical Specifications – Threaded Hex Pipe Plug
- Size Range: 1/8” to 4” (DN6 – DN100)
- Pressure Rating: Class 2000 / 3000 / 6000 / 9000
- Thread Standard: NPT / BSPT / BSPP
- Manufacturing Process: Closed Die Forging + CNC Machining
- Surface Finish: Pickled / Passivated / Sandblasted
- Inspection Methods: Dimensional Inspection, PMI, UT, MT
Manufactured in accordance with ASME B16.11 and BS 3799 standards, ensuring compatibility with global industrial threaded piping systems.
Material Grades Available
Standard Stainless Steel Materials:
- ASTM A182 F304 / F304L
- ASTM A182 F316 / F316L
- ASTM A182 F321 / F347
Optional Special Alloys:
- Duplex Stainless Steel F51 / F53 / F55
- Nickel Alloys including Inconel 625, Monel 400, Hastelloy C276
All stainless steel threaded pipe plugs are supplied with EN 10204 3.1 mill test certificates and full heat number traceability.
Manufacturing Process of Forged Hex Screw Pipe Plug
Production of high pressure stainless steel pipe plugs follows strict quality procedures:
- Raw material verification and cutting
- Closed die hot forging for improved mechanical properties
- Heat treatment when required
- CNC precision thread machining
- Pickling and passivation surface treatment
- Final dimensional inspection and NDT testing
Forging significantly improves fatigue resistance and structural integrity compared to bar-stock machining.
Typical Applications of Stainless Steel Threaded Pipe Plugs
Hex screw pipe plugs are widely used for pipeline sealing, pressure isolation and maintenance access in:
- Oil and gas transmission pipelines
- Petrochemical and refinery processing plants
- Instrumentation pressure gauge ports
- Hydraulic and pneumatic fluid systems
- Offshore and marine piping installations
- Power plant steam and condensate lines
- Water treatment and chemical dosing systems
These threaded plugs help seal unused outlets, isolate equipment sections and provide secure closure during maintenance operations.
How to Select the Correct Threaded Pipe Plug
When selecting a stainless steel hex screw pipe plug for industrial pipeline systems, engineers should consider:
Thread Standard Compatibility
Ensure that NPT, BSPT or BSPP thread type matches the existing pipeline connection to avoid leakage or galling.
Pressure Rating Requirement
Choose Class 3000, 6000 or 9000 forged pipe plugs based on system operating pressure and safety factors.
Material Selection
316 stainless steel is recommended for corrosive environments, while duplex or nickel alloys may be required for offshore or chemical service.
Temperature Conditions
High temperature or cryogenic pipelines may require special alloy grades.
Correct selection ensures long-term reliability and safe operation.
Installation Guidelines for Hex Screw Pipe Plugs
- Clean and inspect female threads before installation
- Apply PTFE tape or thread sealant where required
- Tighten using proper torque to avoid thread damage
- Avoid over-tightening which may cause galling
- Conduct pressure testing after installation
Proper installation significantly improves sealing performance and service life.
Quality Assurance & Testing
Each forged stainless steel pipe plug undergoes:
- Thread gauge verification
- Positive Material Identification (PMI)
- Surface defect inspection
- Optional ultrasonic and magnetic particle testing
- Dimensional tolerance confirmation
Strict quality control ensures compliance with international project specifications.
Why Choose Our Forged Stainless Steel Pipe Plug
- Professional forged pipe fitting manufacturer with global export experience
- Large inventory covering multiple sizes and pressure classes
- OEM logo marking and customized packaging support
- Short lead time for urgent pipeline projects
- Technical drawing assistance for EPC contractors
- Competitive factory pricing with reliable logistics service
