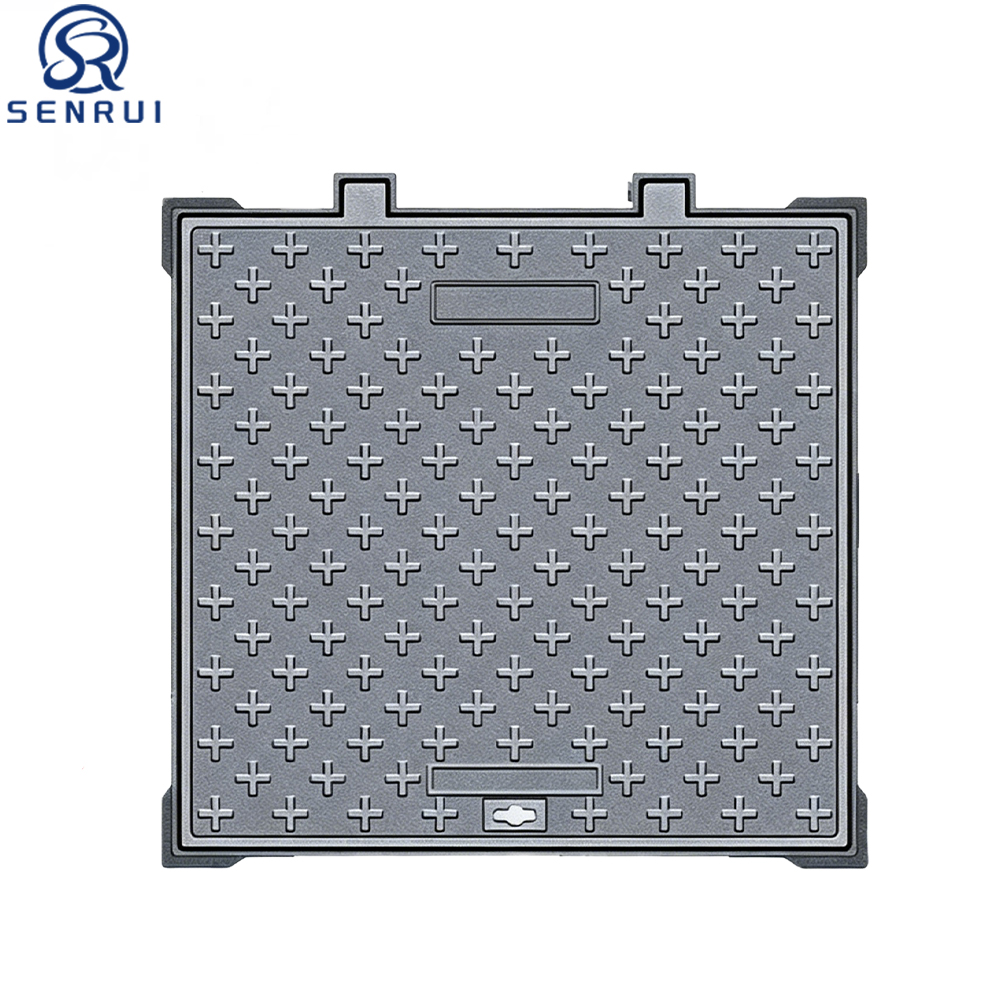

A Square Ductile Iron Manhole Cover is a removable access cover designed to provide safe and convenient access to underground drainage, sewer, water supply, electrical, telecommunications, and utility systems.
Unlike a simple access plate, a complete manhole cover normally consists of a cover and a supporting frame. The frame is installed around the underground access opening, while the cover sits inside the frame and can be removed when inspection or maintenance is required.
Ductile iron is widely used for infrastructure products because it combines high strength, toughness, and impact resistance. These properties make ductile iron suitable for applications where the cover may be exposed to pedestrian traffic, vehicles, weather, and repeated loading.
The square design can provide a stable supporting structure and is commonly used for utility chambers, drainage systems, inspection chambers, and other underground infrastructure.
However, selecting the right product requires more than choosing a shape and material. The load class, dimensions, frame design, installation environment, and surface treatment should all be considered before ordering.
Material selection directly affects the service performance and durability of a manhole cover.
Ductile iron has a nodular graphite structure that gives it a combination of strength and toughness. Compared with conventional gray cast iron, ductile iron can provide improved mechanical properties and better resistance to impact and repeated loading.
For infrastructure projects, this can be particularly important in areas where covers are exposed to frequent traffic or environmental stress.
High Mechanical Strength
Ductile iron provides strong mechanical performance and is suitable for demanding infrastructure applications when the correct design and load class are selected.
Excellent Impact Resistance
Manhole covers can experience sudden or repeated loads from vehicles, maintenance equipment, and other external forces. Ductile iron offers good toughness for these conditions.
Good Resistance to Deformation
A properly designed ductile iron cover can maintain its structural shape under its specified working load, helping reduce premature deformation.
Long-Term Durability
With an appropriate surface coating and proper installation, ductile iron manhole covers can provide long-term service in outdoor and underground infrastructure environments.
Suitable for Different Infrastructure Projects
Ductile iron covers are widely used for roads, drainage systems, sewer networks, utility chambers, industrial facilities, and municipal infrastructure.

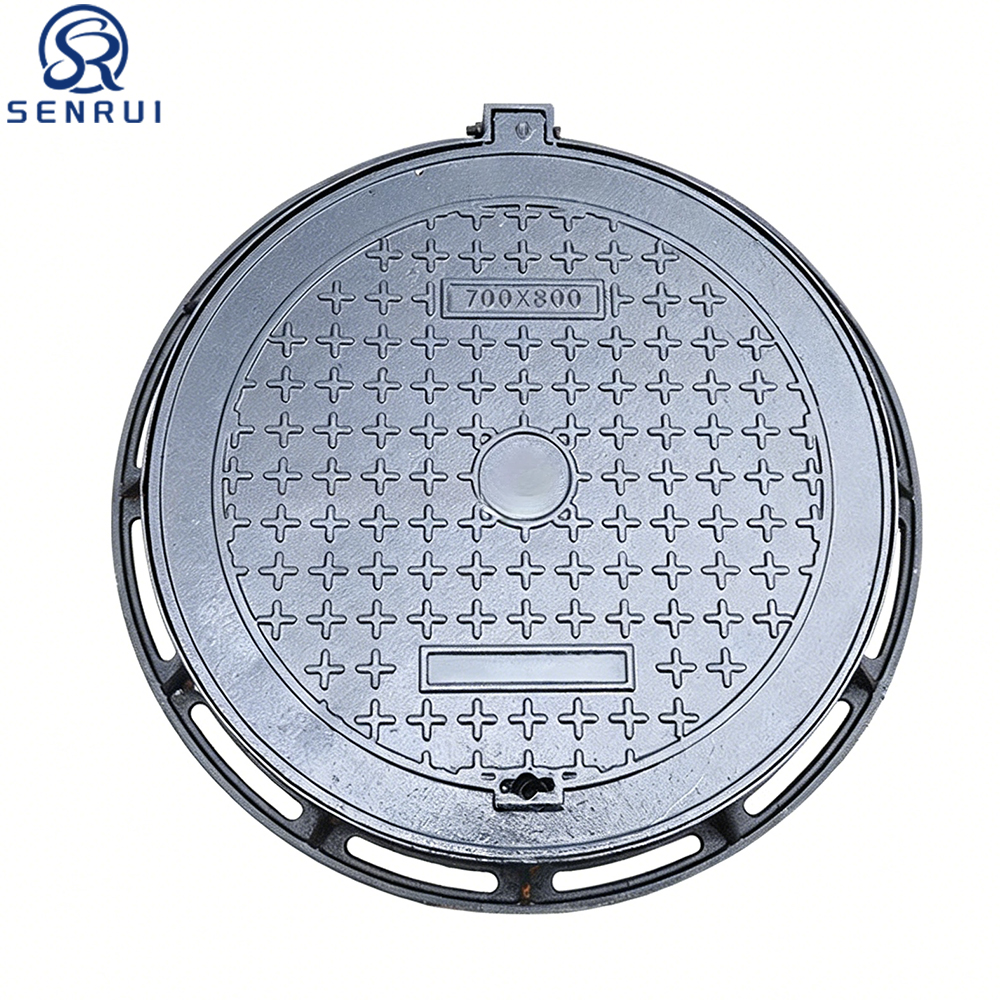

Square and round manhole covers are both widely used, but their suitability depends on the application and engineering design.
| Comparison Factor | Square Manhole Cover | Round Manhole Cover |
|---|---|---|
| Shape | Square | Circular |
| Installation | Convenient for rectangular chambers | Convenient for circular openings |
| Typical Applications | Utility chambers, drainage, access points | Roads, sewer systems, utility access |
| Handling | Usually requires correct orientation | Cannot fall through a circular opening when correctly sized |
| Frame Design | Square frame | Circular frame |
There is no universal answer that one shape is better than the other.
A Square Ductile Iron Manhole Cover can be a practical choice when the underground chamber or access opening has a square or rectangular configuration. A round cover may be more suitable for circular access systems.
The correct choice should be based on the engineering design rather than shape preference alone.

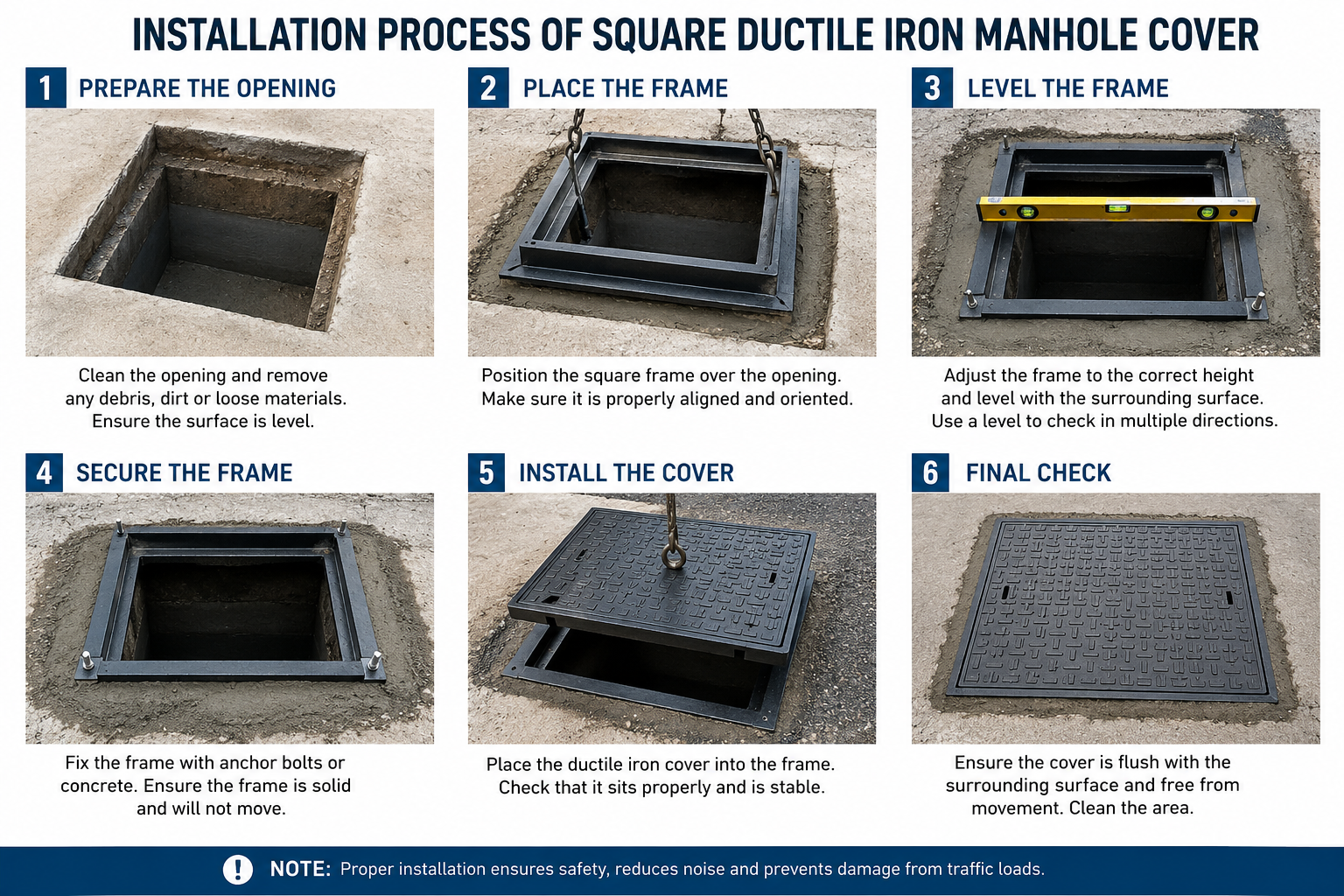

Proper installation is essential for the performance and service life of the manhole cover.
Clean the manhole opening and remove loose materials, dirt, concrete debris, and other foreign objects.
Place the ductile iron frame over the opening and check that it is properly aligned and level.
The frame should have sufficient structural support from the surrounding concrete or supporting structure. Poor support can transfer excessive stress to the cover and frame.
Place the cover into the frame and confirm that it sits correctly on the seating surface.
The finished cover should be properly aligned with the surrounding road, pavement, or ground surface according to the engineering requirements.
Check the cover for movement, instability, visible gaps, incorrect positioning, or interference with surrounding surfaces.
Correct installation helps reduce problems such as cover movement, uneven loading, premature damage, and excessive noise.
Even a high-quality ductile iron manhole cover can experience problems when the wrong product is selected or installed.
Using a cover below the required load class can increase the risk of deformation under repeated traffic loading.
A poorly installed or improperly supported frame can cause the cover to move when vehicles pass over it.
Loose fitting between the cover and frame can create impact noise during repeated loading.
Inadequate surface protection or an unsuitable coating system can accelerate corrosion in aggressive environments.
Incorrect measurements are one of the most common causes of installation problems, particularly during replacement projects.
For this reason, product selection should consider the complete system rather than the cover alone.
Size is another critical consideration.
One common purchasing mistake is selecting a manhole cover based only on the nominal opening size. The actual dimensions of the cover and frame should be confirmed before production or installation.
Important dimensions may include:
For a square manhole cover, the length and width are normally equal, but the frame dimensions and clear opening can vary depending on the design.
Before placing an order, the buyer should provide an engineering drawing or confirm the required dimensions with the manufacturer.
For replacement projects, measuring the existing frame is especially important because an apparently similar cover may not fit correctly if the frame dimensions are different.
Square ductile iron manhole covers are suitable for a wide range of infrastructure applications.
Used for stormwater drainage systems, inspection chambers, and municipal drainage networks.
Provides access to underground sewer infrastructure for inspection, cleaning, and maintenance.
Suitable for underground water supply chambers and valve access points.
Heavy-duty models can be selected for suitable road and traffic applications according to the required load class.
Used for underground cable chambers and utility access points.
Suitable for factories, warehouses, industrial parks, logistics areas, and other facilities requiring underground utility access.
A ductile iron manhole cover provides removable access to underground drainage, sewer, water, electrical, telecommunication, and utility systems while protecting the access opening from external loads and environmental exposure.
Yes, appropriately designed and rated ductile iron manhole covers can be used in road infrastructure. The required load class, cover design, frame, and supporting structure must be suitable for the actual traffic conditions.
Measure the actual opening and existing frame, including the clear opening, overall frame dimensions, cover dimensions, and installation depth. For replacement projects, providing the manufacturer with an engineering drawing is recommended.
Ductile iron generally provides higher strength and toughness than conventional gray cast iron because of its nodular graphite structure. However, actual performance depends on the material grade, product design, manufacturing quality, and load class.
Service life depends on material quality, load conditions, installation quality, surface treatment, environmental exposure, and maintenance. A properly selected and installed ductile iron manhole cover can provide long-term service in suitable applications.
Yes. Depending on the manufacturer, customization can include dimensions, load class, surface treatment, markings, logos, cover patterns, packaging, and other project-specific requirements.
Selecting the right Square Ductile Iron Manhole Cover requires more than choosing a size—consider the material, load class, dimensions, frame design, installation environment, surface treatment, and project requirements to achieve reliable long-term performance.
